Engine Cooling Pumps

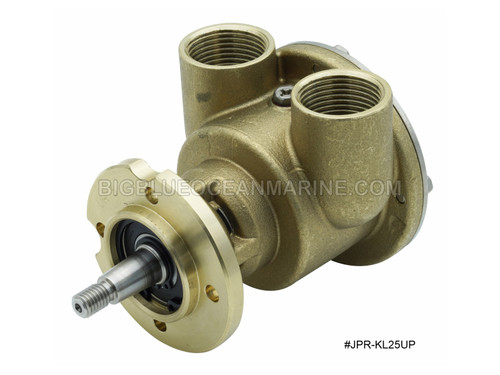

Flexible & Bronze Impeller Engine Cooling Water Pumps
JMP is specialized in manufacturing the HIGHEST QUALITY heavy duty raw water pumps, marine engine cooling pumps and spare parts coming into their 40th Year! These are designed and manufactured especially for engine cooling applications. You can have CONFIDENCE that when you choose a JMP pump you are truly getting the BEST.
Flexible impeller pumps provide an efficient solution to most marine pumping needs. The primary advantage of a flexible impeller pump is its self-priming capability. As the blades of the impeller are depressed and rebound, they create their own vaccum, drawing fluid into the pumps (see operating principle)
Pumps with dry suction instantly lifts up to 3 meters, up to 9.5 meters when wet. Thus a flexible impeller pump being used in bilge, deck wash, or engine cooling need not be located below the water line or manually primed. An added feature of flexible impeller pumps is that they can pass fairly large particles without clogging or damaging the pump. This reduces the need for filtering the incoming fluid. A common feature of all flexible impeller pumps is that they cannot be permitted to run dry for more than 30 seconds. Both the impeller and the seals depend upon the water for lubrication and will soon burn out if run dry. Worn parts are easily replaceable, and service kits are available for all models.
For Good Pumping
Pipe runs should always be kept as short and straight as possible, avoiding rising and over obstructions, as this can create air-locks. Plumbing should be reinforced, non-collapsible hose fo the recommended size. Flexible impeller pumps must not run dry (no more than 30 seconds). Bilge pumps and water pumps in particular should always be fastened to the boat structure to ensure their permanent location. Mount flexible impeller pumps so that some water is left in the pumpbody when the pump is off; this will prolong impeller lif and speed priming. Pumps must be installed with the overboard discharge well above the waterline to avoid water syphoning back into the vessel.
Features
- Strong Body
- Long Life Mechanical Seal
- High Performance and Long Life Flexible Impeller
- Designed with Easy Replacement of Spare Parts
- O-Ring Seals at Endcover (Impeller Cover) Instead of Gasket
