Product Description
JABSCO WATER PUPPY,STURDY PUPPY COMPACT SELF-PRIMING FLEXIBLE IMPELLER PUMPS (12/24VDC) (115VAC)
Uses: Bilge, Washdown, Transfer systems
Model:23670, 23620, 12210, 18660, 18670, 18610, 12560, 11810
FEATURES:
- UP to 23 GPM (Varies by Model)
- Self-Prime to 20ft (Varies by Model)
- Ignition protection
- VDC or VAC options
- VDC Series Named : Water Puppy
- VAC Series Named : Sturdy Puppy
- Spare parts and Service kits for all models are available, Please Contact Us
Jabsco DC flexible impeller series are named Puppy Utility Pumps, Handling self-priming to 5ft, coming with a 6ft cord as standard. The AC Puppy Utility Pump can self-prime to 10ft for a required long run with a max flow of 15.5 GPM. The DC and AC voltage models are referred to as Water Puppy (VDC), and Sturdy Puppy (VAC) respectively. Capable of a max flow of 23 GPM with vertical lift of 10ft (Varies by Model), and can maintain prime across a 20ft run (Varies by Model).
The utility puppy 6050 series is AC only and has a much higher GPM than other models, Please be aware of this increased flow if trying to replace the end-of-line 11810 utility pump units.
Please note, many models are now European Threaded ONLY, Please see charts and Datasheets.
MOTOR INFORMATION:

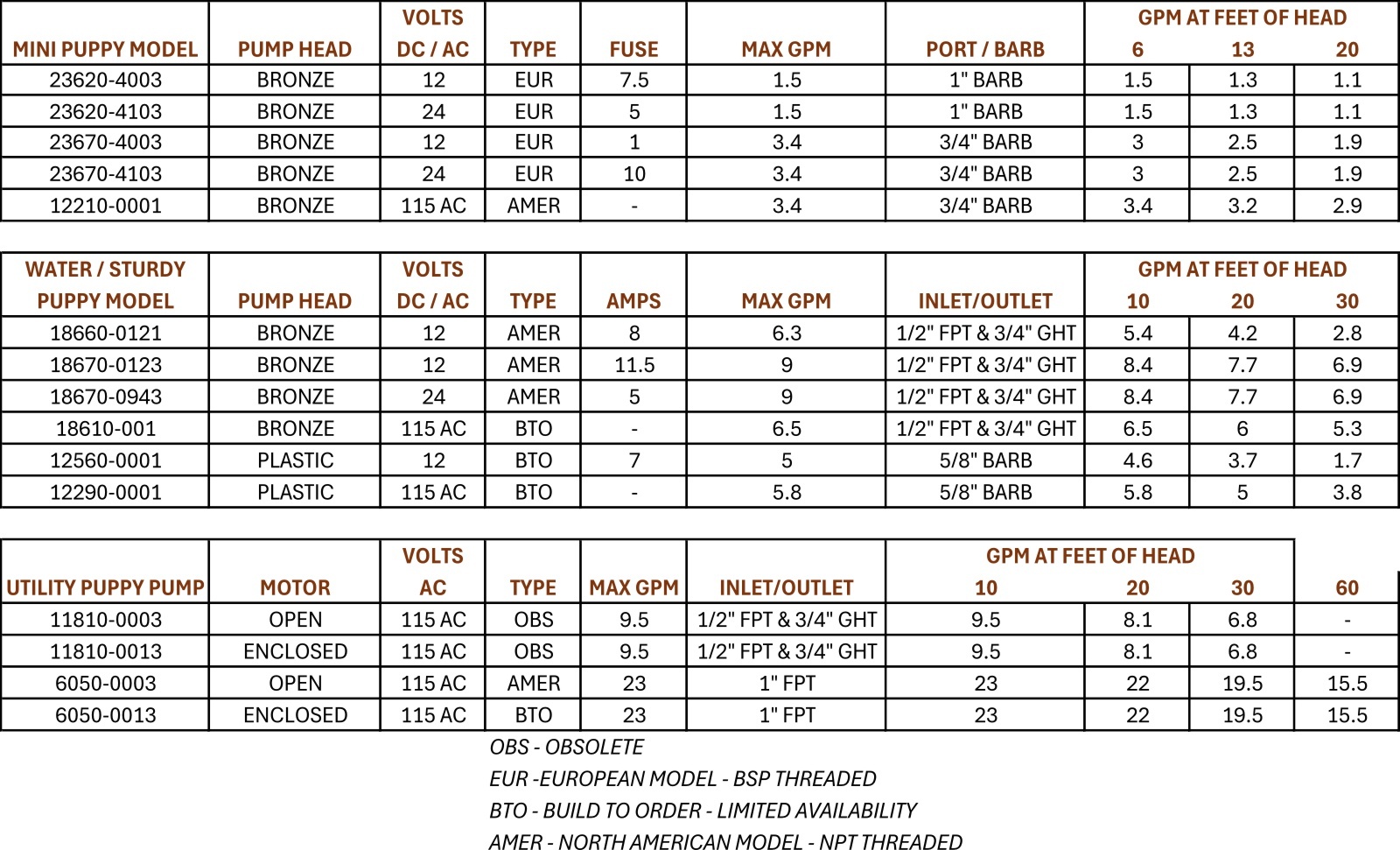

VOLTAGE, AMPS, FUSE - SEE CHARTS ABOVE OR DATA SHEETS BELOW
_______________________
MATERIALS:
Wet End: Varies by Model
BRONZE (Head), Nitrile (Impeller)
Uses: Open Air
_______________________
JABSCO OEM PART NUMBERS: (SPARE PARTS,SERVICE KITS - PLEASE SEE DATASHEETS)
- JABSCO p/n: 23620-4003 pump description is 12V, Mini Puppy, 1.5 GPM, 1" BARB or 1/2" BSP
- JABSCO p/n: 23620-4103 pump description is 24V, Mini Puppy, 1.5 GPM, 1" BARB or 1/2" BSP
- JABSCO p/n: 23670-4003 pump description is 12V, Junior Puppy, 3.4 GPM, 3/4" BARB or 3/8" BSP
- JABSCO p/n: 23670-4103 pump description is 24V, Junior Puppy, 3.4 GPM, 3/4" BARB or 3/8" BSP
- JABSCO p/n: 12210-0001 pump description is 115V AC, Junior Puppy, 3.4 GPM, 3/4" BARB
- JABSCO p/n: 18660-0121 pump description is 12V, Water Puppy, 6.3 GPM, 1/2" FPT or 3/4" GHT
- JABSCO p/n: 18670-0123 pump description is 12V, Water Puppy, 9 GPM, 1/2" FPT or 3/4" GHT
- JABSCO p/n: 18670-0943 pump description is 24V, Water Puppy, 9 GPM, 1/2" FPT or 3/4" GHT
- JABSCO p/n: 18610-0001 pump description is 115V AC, Water Puppy, 6.5 GPM, 1/2" FPT or 3/4" GHT (END-OF-LINE, LIMITED AVAILABILITY)
- JABSCO p/n: 12560-0001 pump description is 12V, Water Puppy, PLASTIC HEAD, 5 GPM, 5/8" BARB (END-OF-LINE, LIMITED AVAILABILITY)
- JABSCO p/n: 12290-0001 pump description is 115V AC, Water Puppy, PLASTIC HEAD, 5.8 GPM, 5/8" BARB (END-OF-LINE, LIMITED AVAILABILITY)
- JABSCO p/n: 11810-0003 pump description is 115v, Utility Puppy, 9.5 GPM, 3/4" PORT, Open Motor (OBSOLETE)
- JABSCO p/n: 11810-0013 pump description is 115v, Utility Puppy, 9.5 GPM, 3/4" PORT, Enclosed Motor (OBSOLETE)
- JABSCO p/n: 6050-0003 pump description is 115v, Utility Puppy, 23 GPM, 1" PORT, Open Motor
- JABSCO p/n: 6050-0013 pump description is 115v, Utility Puppy, 23 GPM, 1" PORT, Enclosed Motor (BUILD-TO-ORDER, LIMITED AVAILABILITY)
CROSS-REFERENCE MODEL(S) LIST:
JABSCO Model: 12560-0001 (Obsolete) is Replaced by JABSCO Model: 18660-0121
JABSCO Model: 12290-0001 (Obsolete) is Replaced by JABSCO Model: 18610-0001 (BUILD-TO-ORDER, LIMITED AVAILABILITY)
JABSCO Model: 11810-0003 (END-OF-LINE, LIMITED AVAILABILITY) ONLY model of 11810 Series still available
JABSCO Model: 11810-0011 (Obsolete) is Replaced by JABSCO Model: 11810-0003, OPEN MOTOR, 115V AC
JABSCO Model: 11810-0013 (Obsolete) is Replaced by JABSCO Model: 11810-0003, OPEN MOTOR, 115V AC
_______________________
JABSCO UTILITY / PUPPY SERIES SELF-PRIMING PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- JABSCO ENTIRE UTILITY PUPPY SERIES MODEL NUMBER TABLE (View and/or Download)
- JABSCO MINI PUPPY 23610 SERIES SELF-PRIMING PUMP MANUAL (View and/or Download)
- JABSCO WATER PUPPY 18660 SERIES SELF-PRIMING PUMP MANUAL (View and/or Download)
- JABSCO WATER PUPPY 18660 SERIES SELF-PRIMING PUMP FLYER(View and/or Download)
- JABSCO WATER PUPPY 18670 SERIES SELF-PRIMING PUMP MANUAL (View and/or Download)
- JABSCO STURDY PUPPY 23670 SERIES SELF-PRIMING PUMP MANUAL (View and/or Download)
- JABSCO JUNIOR PUPPY 23920 SERIES SELF-PRIMING PUMP MANUAL (View and/or Download)
- JABSCO STURDY PUPPY 6050 SERIES SELF-PRIMING PUMP MANUAL (View and/or Download)
- JABSCO WATER PUPPY 18610 SERIES SELF-PRIMING PUMP MANUAL (View and/or Download)
- JABSCO STURDY PUPPY 12210 SERIES SELF-PRIMING PUMP MANUAL (View and/or Download)
- JABSCO UTILITY PUPPY 6050 SERIES SELF-PRIMING PUMP DATASHEET (View and/or Download)
- JABSCO UTILITY PUPPY 8860 SERIES SELF-PRIMING PUMP DATASHEET (View and/or Download)
- JABSCO JUNIOR PUPPY 12560 SERIES SELF-PRIMING PUMP DATASHEET (View and/or Download)
- JABSCO WATER PUPPY 18620 SERIES SELF-PRIMING PUMP DATASHEET (View and/or Download)
- JABSCO WATER PUPPY 18650 SERIES SELF-PRIMING PUMP DATASHEET (View and/or Download)
- JABSCO MINI PUPPY 23620 SERIES SELF-PRIMING PUMP DATASHEET (View and/or Download)
- JABSCO MINI PUPPY 23680 SERIES SELF-PRIMING PUMP DATASHEET (View and/or Download)
- JABSCO WATER PUPPY 18660 SERIES SELF-PRIMING PUMP DATASHEET (View and/or Download)
- JABSCO WATER PUPPY 18620 SERIES SELF-PRIMING PUMP DRAWING (View and/or Download)
- JABSCO WATER PUPPY 18650 SERIES SELF-PRIMING PUMP DRAWING (View and/or Download)
- JABSCO WATER PUPPY 18660 SERIES SELF-PRIMING PUMP DRAWING (View and/or Download)
- JABSCO WATER PUPPY 18670 SERIES SELF-PRIMING PUMP DRAWING (View and/or Download)
- JABSCO MINI PUPPY 23610 SERIES SELF-PRIMING PUMP DRAWING (View and/or Download)
- JABSCO MINI PUPPY 23620 SERIES SELF-PRIMING PUMP DRAWING (View and/or Download)
- JABSCO JUNIOR PUPPY 23670 SERIES SELF-PRIMING PUMP DRAWING (View and/or Download)
- JABSCO JUNIOR PUPPY 23680 SERIES SELF-PRIMING PUMP DRAWING (View and/or Download)
- JABSCO UTILITY PUPPY 23920 SERIES SELF-PRIMING PUMP DRAWING (View and/or Download) OBSOLETE
- JABSCO WATER PUPPY 12560 SERIES SELF-PRIMING PUMP DATASHEET END-OF-LINE, Limited availability (View and/or Download)
- JABSCO STURDY PUPPY 12290 SERIES SELF-PRIMING PUMP MANUAL END-OF-LINE, Limited availability (View and/or Download)
- JABSCO UTILITY PUPPY 11810 SERIES SELF-PRIMING PUMP DATASHEET END-OF-LINE, Limited availability (View and/or Download)
