Product Description
JMP Marine Flexible Impeller Kit #8100-01K
Kit Includes:
*Some applications do not require all items in kit
- JMP Marine Flexible Impeller #8100-01
QTY:1 - Gasket (GAK000701)
QTY:1 - Gasket (GAK0007)
QTY:1 - O-Ring (ORG0015)
QTY:1
Replacement For:
- Ancor J050035
- Caterpillar 5L6042 / 5N9360 / 1W9046
- CEF 500135
- Detroit Diesel 5193553 / 5196628 / 8924838
- Jabsco 17935-0001
- Johnson 09-819B
- Onan 500135
- Perkins 7054
- Volvo Penta 807904 / 825942 / 875660 / 875736 / 857636-1 / 877066 / 21730344 / 21951362
Note: Early TMD series models from Volvo Penta used Impeller 8000-01 (9 blades) because the engine speed being lower, please use impeller #8000-01 if this is the case. The 8100-01 Impeller (12 blades) was needed for the Volvo Penta High Speed engines.
Also used in the following JMP Marine Replacement Sea/Raw Water Engine Cooling Pumps:
PLEASE NOTE: The pump(s) listed below are internally compatible to Genuine
- JPR-G6100 (Detroit Diesel Replacement Sea/Raw Water Engine Cooling Pump)
For Detroit Diesel Engine Models: 6V53, 6V71, 8V53
Compatible to Genuine: YES - JPR-CT3306 (Caterpillar Replacement Sea/Raw Water Engine Cooling Pump)
For Caterpillar Engine Models: 3304, 3304B, 3306, 3306B, D330C
Compatible to Genuine: YES - JPR-V2000 (Volvo Penta Replacement Sea/Raw Water Engine Cooling Pump)
For Volvo Penta Engine Models:
TAMD61/62, TAMD71/72/73, MD 100/120, TD100/120, TMD100/120, TAMD 100/102/120
Compatible to Genuine: YES

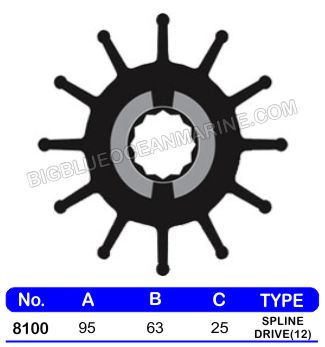

IMPELLER 8100-01 DIMENSIONS & SPECS:
| A (Impeller Dia) | 95mm |
| B (Impeller Width) | 63mm |
| C (Shaft Dia) | 25mm |
| No. of Blades | 12 |
| Insert Type | Spline Drive(12) |
| Impeller Weight (approx) |
1.25 LBS |
WHY USE JMP MARINE FLEXIBLE IMPELLERS vs ALL OTHERS?
- JMP Marine (JMP Corp) performs total "IN HOUSE MANUFACTURING" meaning that they do not outsource any part of the process, including materials, as all the other brands today must do. This ensures the highest standards of quality control making sure that their consumers, as yourself, have the utmost confidence and peace of mind that you are receiving a product without comprise. You will get the QUALITY & PERFORMANCE you are looking for and more!
- JMP Marine Flexible Impellers DO NOT USE HARMFUL CHEMICALS thereby ensuring the protection of our environment.
- JMP has developed a unique formula taken over 40 YEARS OF EXPERIENCE producing an impeller mixture that has been specifically designed for seawater & raw water applications resulting in a much more durable longer lasting product vs the Neoprene and Nitrile of other brands today.
- JMP Marine goes a step further . . . in developing an added mixture they call "WAX BRANDING" which is infused throughout the impeller material and has aided in the result of an impeller that can last up to 3 times longer than all others out there.
- JMP Marine uses "BRASS INSERTS" vs stainless steel. Even though this does take longer, it produces a machined product that is of better quality resulting in a much MORE DURABLE LONGER LASTING PRODUCT.
