Product Description
MATE /MARCO UP1 SERIES FLEXIBLE IMPELLER PUMPS (12V/24V DC) (115V/230V 50/60Hz)
Uses: BILGE AND WATER TRANSFER/RE-CIRCULATION SYSTEMS
Model:UP1 SERIES
FEATURES:
- UP to 714 GPH
- Max Flow up to 11.9G/min at 1FT
- Self-priming to 5FT
- DC or AC Voltages (Varies by Model)
- Inlet: 3/4" or 1"
- Outlet: 3/8" or 1/2"
MATE / MARCO built flexible impeller pumps are designed for cost-efficiency and reduced maintenance with a nickle-plated brass body, waterproof cable guide and internal brush holders with an EMI filter. DC Voltage models are self-priming to 5 feet, while the AC voltage models are self-priming to 9 feet. These units are built to handle all bilge, waste water and ballast duties regardless of vessel.
The UP1 series is NOT suitable for flammable liquids, Big Blue Ocean marine also carries the UP2/UP3/UP6 Series of pumps for fuels or oils. Viton (FKM) impellers are standard, but nitrile impellers are available.
MOTOR INFORMATION:

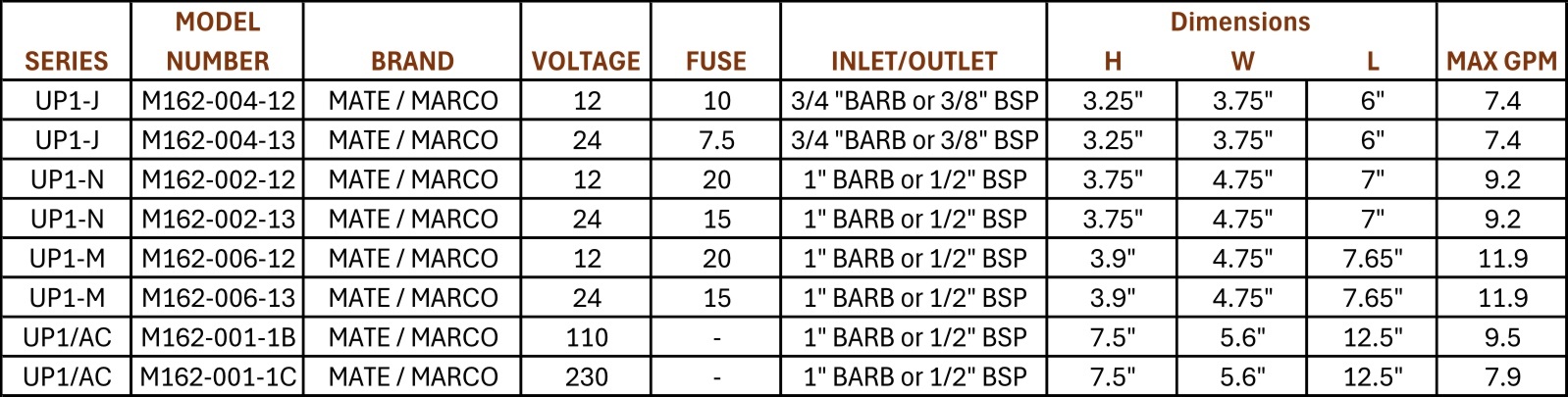

See Charts Above or DataSheets Below
_______________________
Wet End:
Nickel-plated Brass, Viton Impeller
Max Internal Pressure: 15 PSI (1 bar)
Max Internal Temperature: 140 °F (60 °C)
_______________________
MATE / MARCO OEM PART NUMBERS:
- MATE p/n: M162-004-12 pump description is #UP1-J, 12V
- MATE p/n: M162-004-13 pump description is #UP1-J, 24V
- MATE p/n: M162-002-12 pump description is #UP1-N, 12V
- MATE p/n: M162-002-13 pump description is #UP1-N, 24V
- MATE p/n: M162-006-12 pump description is #UP1-M, 12V
- MATE p/n: M162-006-13 pump description is #UP1-M, 24V
- MATE p/n: M162-001-1B pump description is #UP1/AC, 110V 60HZ
- MATE p/n: M162-001-1C pump description is #UP1/AC, 230V 50HZ
- MATE p/n: R6400005 is Service Kit for UP1 SERIES, DC Units
- Service Kit Includes; Impeller, End Plate, O-Ring, (3) End Screws.
- Service Kit Includes; Impeller, End Plate, O-Ring, (3) End Screws.
CROSS-REFERENCE MODEL(S) LIST:
Unavailable
_______________________
MATE / MARCO PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)

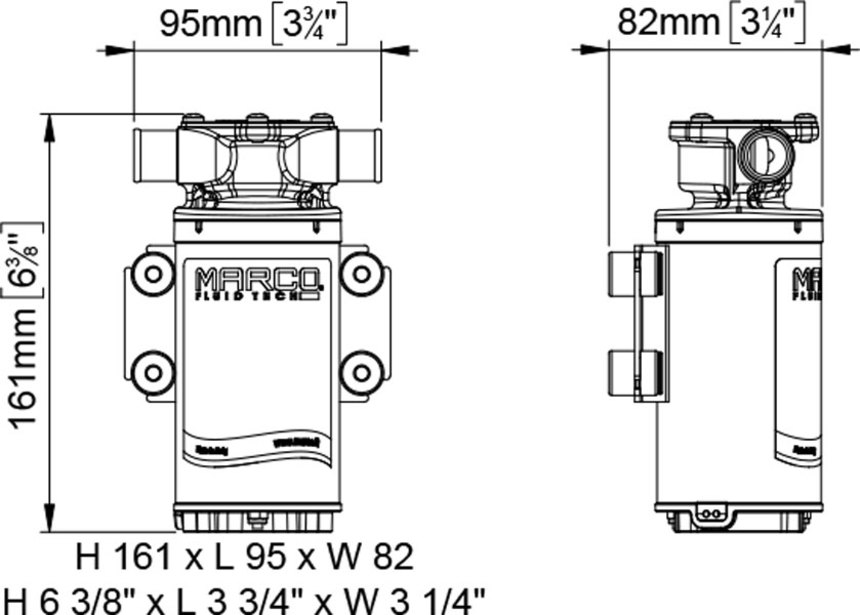

- MATE UP1 SERIES VDC DIMENSIONAL DRAWING (View and/or Download)

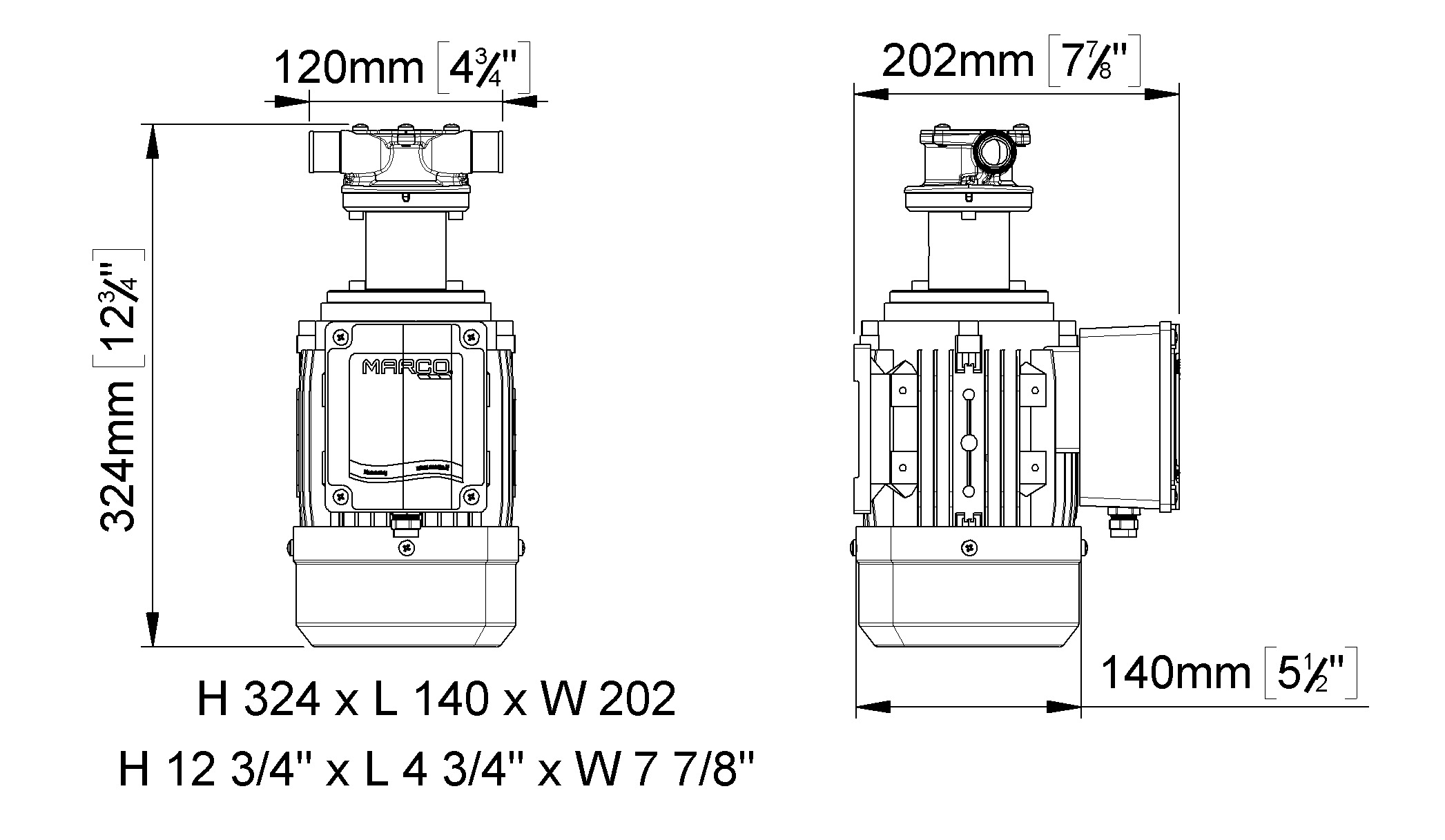

- MATE UP1 SERIES VAC DIMENSIONAL DRAWING (View and/or Download)
- MATE UP1-M PUMP MANUAL (View and/or Download)
- MATE UP1-J PUMP MANUAL (View and/or Download)
- MATE UP1 PUMP MANUAL (View and/or Download)
- MATE UP1/AC 110V PUMP MANUAL (View and/or Download)
- MATE UP1/AC 230V PUMP MANUAL (View and/or Download)
- MATE /MARCO FULL CATALOG (View and/or Download)
