Product Description
#JSK0123 JMP Marine Major Service Kit
Major Service Kit for JMP Marine Cummins Engine Cooling Raw Water / Seawater Pump JPR-C3800 or JPR-C3800G, Cummins 3049157, 3085649, 3897669
PLEASE NOTE:
Major Kit #JSK0123 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
Major Service Kit #JSK0123 Includes (All Internal Parts):
BER0037 (BEARING) - QTY:1
BER0038 (BEARING) - QTY:1
BOL01101 (SLOTTED NUT) - QTY:1
BOL0111 (LOCK WASHER) - QTY:1
BOL0112 (FLAT WASHER) - QTY:1
BOL011301 (HEX BOLT) - QTY:1
BOL0117 (SET SCREW) - QTY:1

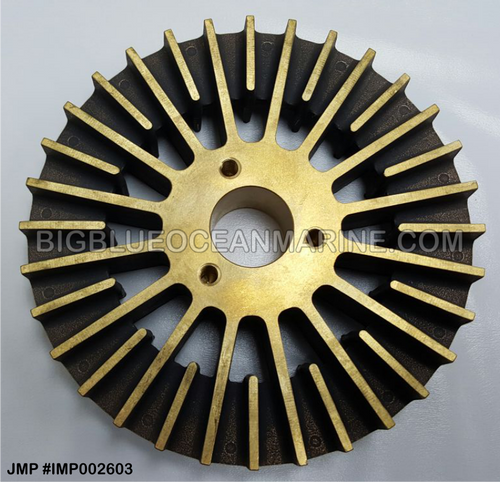

IMP002603 (BRONZE IMPELLER) - QTY:1

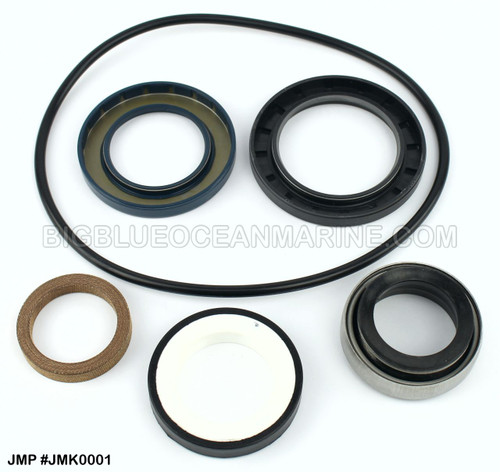

MCSSET0009 (MECHANICAL SEAL SET) - QTY:1 (*Part of Seal Kit #JMK0001)
NIP0008 (PLUG, DRAIN) - QTY:1
NIP0009 (PIN, GREASE) - QTY:2
ORG0023 (O-RING) - QTY:2
ORG0024 (O-RING) - QTY:1
ORG0029 (O-RING) - QTY:1 (*Part of Seal Kit #JMK0001)
PORT001G (PORT PLATE) - QTY:2
RET0020 (OIL SEAL) - QTY:1 (*Part of Seal Kit #JMK0001)
RET0022 (OIL SEAL) - QTY:1 (*Part of Seal Kit #JMK0001)
RIG0001 (RING, DISTANCE) - QTY:1
SHA0054 (SHAFT) - QTY:1
SNP0016 (SNAP RING) - QTY:1
SNP0018 (SNAP RING) - QTY:1
SPC0003 (SPACER) - QTY:1 (*Part of Seal Kit #JMK0001)
SPC0005 (COLLAR SEAL) - QTY:1
SPC0009 (COLLAR SEAL) - QTY:1
SPC0010 (SHIM, 0.3mm) - QTY:2
SPC0011 (SHIM, 0.1mm) - QTY:2
JSK0123 Approx Total Lbs: 32 LBS / 14.55 kg
Services JMP Marine Cummins Replacement Engine Cooling Raw Water Pump & OEM / Genuine . . .
JMP Marine Engine Cooling Raw Water Pump: #JPR-C3800, JPR-C3800G
#JPR-C3800 & C3800G Replaces Cummins Pump P/N: 3085649, 3049157, 3897669
#JPR-C3800 & C3800G good for Engine Models: K38, KT38M, KTA38M, KTA50M
Picture of Kit & Pump listed Above:
"Picture Coming Soon"
JMP MARINE . . ."THE ONLY ONE"
