Product Description
#JSK0104 JMP Marine Major Service Kit
Major Service Kit for JMP Marine Volvo Penta Engine Cooling Raw Water / Seawater Pump JPR-VP0090D, Volvo Penta Pump 21380886, 3819485
PLEASE NOTE:
Major Kit #JSK0104 can be used to service both JMP Marine & OEM / Genuine engine cooling raw water pumps. JMP Marine uses the highest grade of materials in manufacturing all their parts & components which ensures the longest lasting performance product for the customer.
Major Service Kit #JSK0104 Includes (All Internal Parts):
7446-01 (FLEXIBLE IMPELLER) - QTY:1
ORG0067 (O-RING, END COVER) - QTY:1
COV0047 (END COVER PLATE) - QTY:1
BOL0080 (HEX SCREWS, END COVER) - QTY:4
CAMSET0036 (CAM SET) - QTY:1
MCSSET0023 (MECHANICAL SEAL) - QTY:1
PIN0001 (PIN, WEAR PLATE) - QTY:1
SNP0006 (SNAP-RING, MECH SEAL) - QTY:1
SPC0019 (SPACER, WASHER) - QTY:1
WER0029 (WEAR PLATE) - QTY:1
BER0059 (BEARING) - QTY:1
BOL0160 (NUT) - QTY:1
BOL0161 (SPRING WASHER) - QTY:1
BOL0175 (BOLT) - QTY:2
BOL0064 (SPRING WASHER) - QTY:2
NIP0014 (PLUG) - QTY:1
ORG0059 (O-RING, MOUNTING INNER) - QTY:1
ORG0070 (O-RING, MOUNTING OUTER) - QTY:1
RET0051 (RETAINER) - QTY:1
SHA0120 (SHAFT) - QTY:1
SNP0005 (SNAP-RING, SMALL) - QTY:1
SNP0014 (SNAP-RING, LARGE) - QTY:1
JSK0104 Approx Total Lbs: 5.50 LBS / 2.50 KG
Services JMP Marine Volvo Penta Replacement Engine Cooling Pump & OEM / Genuine . . .
JMP Marine Engine Cooling Pump: #JPR-VP0090D
#JPR-VP0090D Replaces Volvo Penta Pump P/N: 21380886, 3819485
#JPR-VP0090D good for D9/D11 Series Engine Models: D9A2A D9-425, D9-500, D9-500 (R4), D9-575, D9A2B D9-425, D9-500 (R5), D9A2A D9A-MH, D9A2B D9-575, D9A2A MH, D9A2B MH, D9A2C D9A-MH, D9-425, D9A2D D9-500 (R5), D9A2E D9-425, D9A2F D9-575, D9A2A MP, D9A2B MP, D9A2C, D9A2D, D9A2E, D9A2F, D9A2G, D9A2H, D9A2J, D9A-J, D9A-K, D9A2K, D9A2K D9-575, D11A-A, D11A-B, D11A-C, D11A-D, D11A-C (IPS), 11A-D (IPS), D11A-E, D11A-E (IPS)

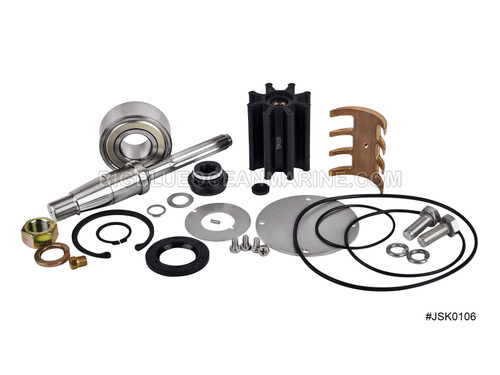

Picture of Kit and Pump listed Above:
JMP MARINE . . ."THE ONLY ONE"
