Product Description

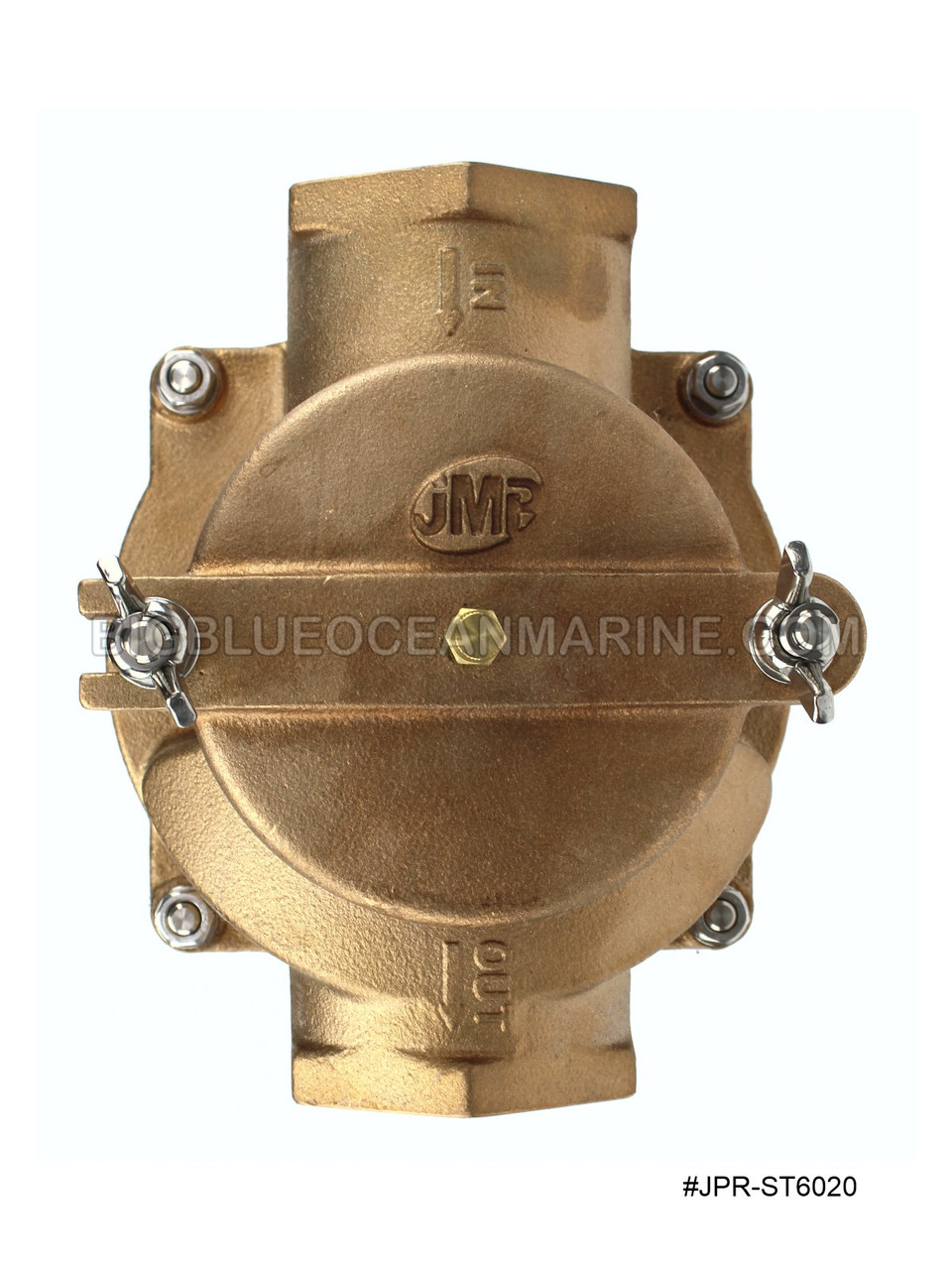

#JPR-ST6020 JMP Marine ST Series Seawater Strainer - 2.5" NPT Inlet / Outlet Ports
Includes:
- Complete Seawater Strainer #JPR-ST6020
QTY: 1
PRODUCT DESCRIPTION
| SPECIFICATION | JPR-ST6020 |
| PORT SIZE: | 2 1/2" (PIPE) - NPT |
| TOP CASTING | Bronze |
| BOTTOM CASTING | Bronze |
| BASKET | Stainless |
| BASKET REPLACEMENT P/N | FIL000502 (2mm) |
| ANODE REPLACEMENT P/N | ZEN000101 |
| SEAL | O-Ring |
| SIZE (A X B X C, mm) | 260 x 445 x 275 |
| CYLINDER (Dia X H, mm) | 210 x 250 |
| WEIGHT (Approx.) | 17.8 kgs |
PLEASE NOTE A,B,C SIZE STANDS FOR:
(A) Top Width / Dia = 260mm
(B) Height = 445mm
(C) Bottom Width / Dia = 275mm
PERFORMANCE TABLE - FLOW CHART
| Bar | 500rpm | 1000rpm | 1800rpm | 2000rpm |
| 0 | 175 L/Min | 325 L/Min | 591 L/Min | 651 L/Min |
| 1 | 155 L/Min | 277 L/Min | 566 L/Min | 591 L/Min |
| 2 | 115 L/Min | 228 L/Min | 482 L/Min | 542 L/Min |
| 3 | 33 L/Min | 116 L/Min | 351 L/Min | 394 L/Min |
| Max | 3.2 bar | 3.6 bar | 4.2 bar | -- |
FEATURES
- Robust Bronze Casting
- Robust Stainless with Chrome Plated Filter Baskets
- Easy Installation
- Easy Maintenance and Cleaning
- Protects Your Pumps and Engines
- Transparent and Strong Cylinder
- O-Rings Provide Better Sealing under High Pressure Applications
- Zinc Bar
- Wingnut
- Center Rods
- Air Cap
JMP MARINE . . ."THE ONLY ONE"
Please note that shipping cost calculations are based on packaged weight which can be higher than the actual product weight.
SHIPPING COST SAVINGS - BULK ORDERS:
Possible discounts on total shipping costs for multiple unit orders; please contact sales department at sales@bigblueoceanmarine.com or by phone at 1 (250) 713-1018 for bulk order shipping quotes. Bulk orders are usually based on an order of 3 units or more.
Warranty Information
Standard 1 Year Manufactures WarrantyProduct Videos
