Product Description
#JPR-NL08IH JMP Marine Northern Lights Replacement Raw Water Engine Cooling Pump
Includes:
- JMP Northern Lights Replacement Engine Cooling Pump #JPR-NL08IH
QTY:1 - O-Ring Mounting Gasket
QTY:1
Product Information:
| SPECIFICATION | JPR-NL08IH |
| Port Size | 1/2" HOSE |
| JMP Impeller | 7070-01 (search 7070-01K) |
| Pump Size (LxWxH,mm) | 110 x 117 x 81 |
| Pump Weight (approx) | 3.30 lbs (1.50 kgs) |
| Genuine Engine MFG Sea Water Pump P/N | Northern Lights 25-12007 *Replaces Old Part No(s): NL 145016820, NL 25-18305 |
| Engine "Generator" Model(s): 6KW and under Series Generators |
M643, M643K, M643M, NL643, M673, M673D, M673L, M673L2, M673L3, M673LD2, M673LD3, NL673, NL673L, NL673L2, NL673L3 |
| Genuine Jabsco Pump P/N | 30415-7001 |
| Compatible to Genuine | NO (Internal Changes made for better performance & Reliability) |
| Changes Made | Builtin Cam, O-Ring for Cover, Mechanical Seal, Oil Seal, Shaft |

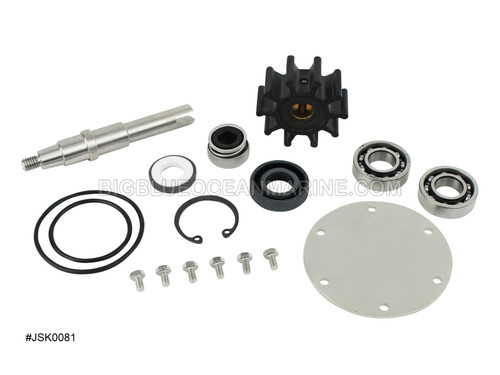

| Major Service Kit (All Internal Parts) *Sold Separately |
JSK0081 (For JPR-NL08IH Only) |
| Minor Service Kit *Sold Separately |
JSM0088 (For JPR-NL08IH Only) |
Features:
- Plug & Play Replacement
- Strong Bronze Body (Heavy Duty Marine Grade Casting)
- Long Life Mechanical Seal instead of Lip Seal
- High Performance and Long Life Flexible Impeller
- Marine Grade Shaft (3X Series Non-Magnetic)
- Integrated Cam
- Designed with Easy Replacement of Spare Parts
- O-Ring Seals at End Cover (Impeller Cover) Instead of a Gasket
"JMP MARINE . . . THE ONLY ONE"
Please note that shipping cost calculations are based on packaged weight which can be higher than the actual product weight.
SHIPPING COST SAVINGS - BULK ORDERS:
Possible discounts on total shipping costs for multiple unit orders; please contact sales department at sales@bigblueoceanmarine.com or by phone at 1 (250) 713-1018 for bulk order shipping quotes. Bulk orders are usually based on an order of 3 units or more.
Warranty Information
1 Year Manufactures WarrantyProduct Videos
