Product Description
Johnson - SPX FLOW Talulah Ballast Pump (12VDC)
Uses: Marine Ballast Control
Model: 10-24690-18 / 10-24939-18
FEATURES:
- UP to 1800 GPM
- Max Flow = 30 Gal/min at 1FT
- Bronze Housing - Flexible Impeller
- Inlet: 1/2" NPT or 1-1/2" NPT
- Outlet: 1" Barb or 1-1/2" NPT
The Talulah Ballast pumps by Johnson are built for reliable service to the needs of ballast management on a variety of vessels. These Pumps are built with run dry protection that will cut out when there is no water. Self-Priming and reversible at full flow rates to handle filling or voiding the ballast with the same efficiency. Complies with USCG 183.410 & ISO 8846 for ignition protection, these units CANNOT be used for flammable fluids. The Talulah Pumps will respond instantly and at full flow to handle the intermittent but time sensitive ballast management as a vessel moves or traverses rough seas.
The Talulah "HF" (High Flow) is refered to as the "Talulah Rapid" or the "Talulah HP", These names all refer to the same Model.
MOTOR INFORMATION:
DC Standard Motor / Talulah
13.6VDC, Fuse : 25 A
AMPS Pumping : 14 A
AMPS Reverse : 18 A
DC High Flow Motor / Talulah HF
13.6VDC, Fuse : 50 A
AMPS Pumping : 25 A
AMPS RUN DRY : up to 45 A
Note: Minimum Wire Size 12 AWG
_______________________
MATERIALS:
Wet End:
Bronze (Front Housing), Stainless Steel (Shaft), EPDM (O-Ring), Orange Neoprene (Impeller)
Uses: Open Air
Note: Requires FLOODED installation. (Pump sensor will not allow pump to run without water present)
_______________________

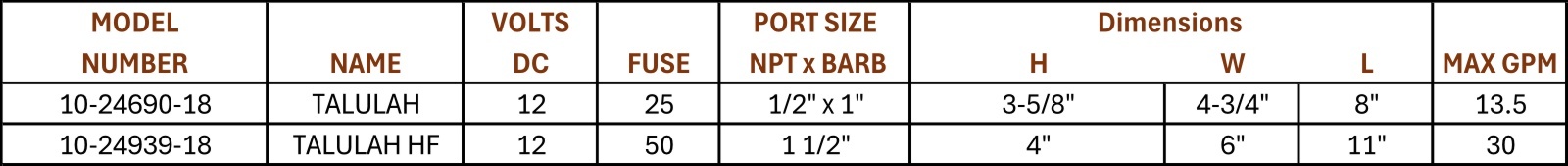

JOHNSON - SPX FLOW OEM PART NUMBERS:
- JOHNSON - SPX FLOW p/n: 10-24690-18 pump description is Talulah Ballast Pump, 12V, 13.5GPM
- JOHNSON - SPX FLOW p/n: 10-24939-18 pump description is Talulah (HF) Rapid Ballast Pump, 12V, 30GPM
- JOHNSON - SPX FLOW p/n: 10-24690-04 pump description is #F4B-1207, 24V Ballast Pump, 1/2" NPT
- JOHNSON - SPX FLOW p/n: 09-824P-2 pump description is Pump Impeller Kit (Talulah Ballast)
- JOHNSON - SPX FLOW p/n: 09-849P-2 pump description is High flow Pump Impeller Kit (Talulah Rapid Ballast)
- JOHNSON - SPX FLOW p/n: 09-824P-1EZ is OBSOLETE, p/n: 09-824P-2 is CURRENT REPLACEMENT
CROSS-REFERENCE MODEL(S) LIST:
JOHNSON Model: 10-24690-18 Can Replace JABSCO Model: 22610-9507 (Ports are identical, Jabsco Model is slightly higher flow but same Voltage and Fuse)
_______________________
JOHNSON - SPX FLOW TALULAH SERIES BALLAST PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- JOHNSON - SPX FLOW TALULAH BALLAST FLYER (View and/or Download)
- JOHNSON - SPX FLOW F4B BALLAST FLYER (View and/or Download)
- JOHNSON - SPX FLOW BALLAST PUMPS MANUAL (View and/or Download)
