Product Description
Johnson - SPX FLOW ULTIMA BILGE SWITCH (12/24 VDC)
Model:Johnson, Ultima
FEATURES:
- NO Mercury
- False start prevention
- 36152 / 36252 Elec-Mag Float switches clips to Johnson Cartridge bilge pumps
Johnson float switch and ULTIMA automatic switch are built to clip onto the Johnson cartridge Bilge pumps. The Detector unit is sealed for long life and uses the Mirus field effect to sense the presence of water similar to how metal detectors function. These Switches are Mercury-Free, activating at 2" (50mm) fluid level and deactivates at 3/4" (20mm) fluid level. There is a US only model of these lines with a different base to allow attachment to the US only line of bilge pumps from Johnson.
MOTOR INFORMATION:

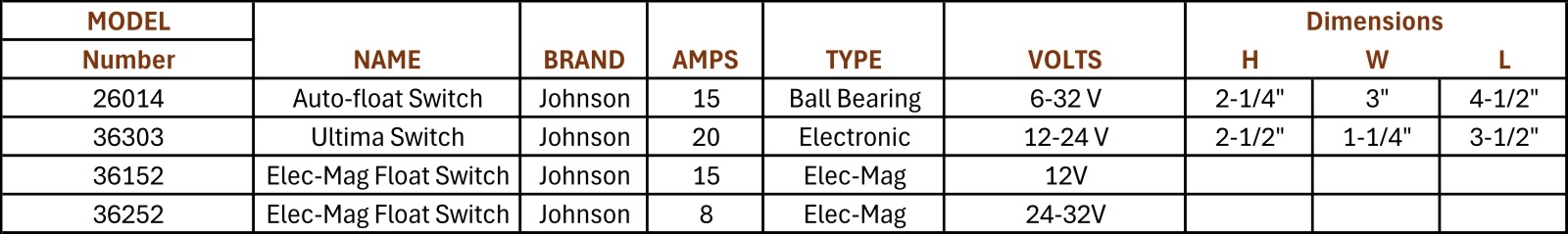

DC Voltage / Amperage / Fuse
Ultima Switch - 36303
12V, 20AMPS
24V, 10AMPS
Elec-Mag Float Switch - 36152/36252
12V, 15AMPS
24V, 8AMPS
Automatic Float Switch - 26014
6-32V, 15AMPS
_______________________
MATERIALS:
ABS Thermoplastic, Sealed
_______________________
JOHNSON - SPX FLOW OEM PART NUMBERS:
- JOHNSON - SPX FLOW p/n: 34-888 pump Matches Model #26014
- JOHNSON - SPX FLOW p/n: 34-1900B-12V pump Matches Model #36152
- JOHNSON - SPX FLOW p/n: 34-1900B-24V pump Matches Model #36252
- JOHNSON - SPX FLOW p/n: 34-36303 pump Matches Model #36303 / ULTIMA SWITCH
CROSS-REFERENCE MODEL(S) LIST:
Unavailable
_______________________
JOHNSON - SPX FLOW BILGE SWITCH DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- JOHNSON - SPX FLOW AS888 BILGE FLOAT SWITCH (26014) MANUAL (View and/or Download)
- JOHNSON - SPX FLOW ELEC-MAG BILGE SWITCH (36152/36252) MANUAL (View and/or Download)
- JOHNSON - SPX FLOW ULTIMA BILGE SWITCH (36303) MANUAL (View and/or Download)
_______________________
