Product Description
JABSCO RUN DRY, SELF-PRIMING UTILITY PUMPS (12/24VDC) (115VAC)
Uses: Bilge, Washdown, transfer systems
Model:23920, 53040, 53041, 53080, 53081
FEATURES:
- UP to 20 GPM
- Self-Prime to 6ft (Varies by Model)
- Ignition protection
- VDC or VAC options
- Spare parts and Service kits for all models are available, Please Contact Us
Jabsco Run Dry Flexible Impeller Pumps utilize a liquid chamber that retains water to allow up to 30 minutes of dry running. Even after loss of the retained water the pumps will lift 6 ft vertically. They are self-priming and rated for ISO 8846 Marine (ignition Protection),8849 Marine (Bilge pump Standard), and BS EN Marine Navigation and Radio Communications equipment standard. Jabsco Run Dry Utility pumps are continuous rated and can handle up to 90% entrained air.
MOTOR INFORMATION:

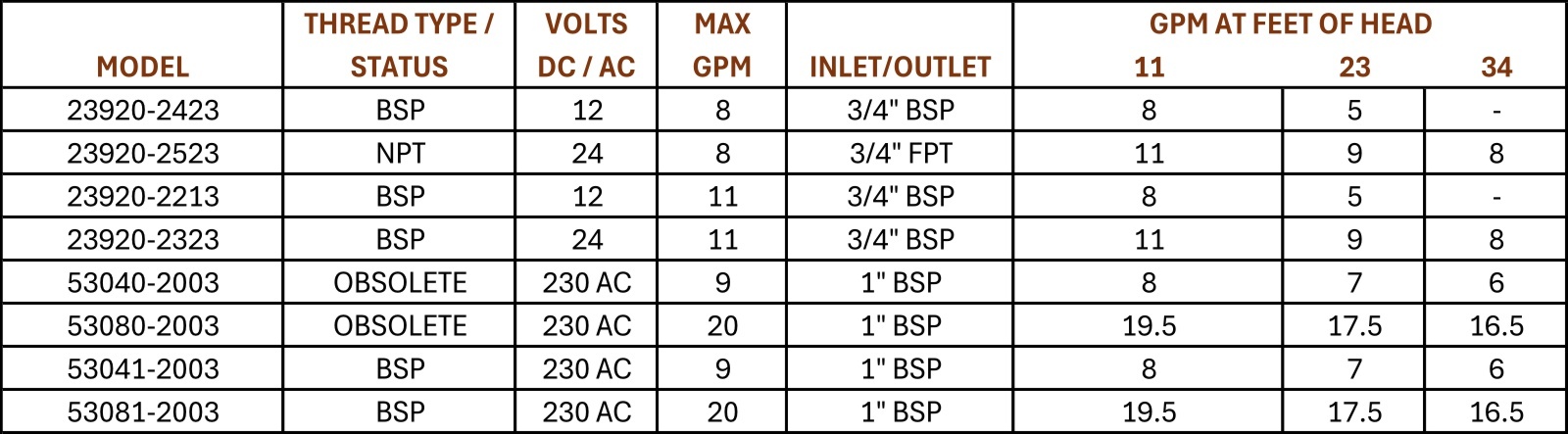

VOLTAGE, AMPS, FUSE - SEE CHARTS ABOVE OR DATA SHEETS BELOW
_______________________
MATERIALS:
Wet End:
BRONZE (Head), Nitrile (Impeller), 316 Stainless Steel (Shaft)
Uses: Open Air
_______________________
JABSCO OEM PART NUMBERS: (SPARE PARTS,SERVICE KITS - PLEASE SEE DATASHEETS)
- JABSCO p/n: 23920-2423 pump description is 12V, Run Dry, Utility Puppy, 8 GPM, 3/4" FPT
- JABSCO p/n: 23920-2523 pump description is 24V, Run Dry, Utility Puppy, 8 GPM, 3/4" FPT
- JABSCO p/n: 23920-2213 pump description is 12V, Run Dry, Utility Puppy, 11 GPM, 3/4" BSP
- JABSCO p/n: 23920-2323 pump description is 24V, Run Dry, Utility Puppy, 11 GPM, 3/4" BSP
- JABSCO p/n: 53040-2003 pump description is 230V AC, 40 minute RATED, Run Dry, Utility Puppy, 9 GPM, 1" BSP
- JABSCO p/n: 53041-2003 pump description is 230V AC, CONTINUOUS RATED, Run Dry, Utility Puppy, 9 GPM, 1" BSP
- JABSCO p/n: 53080-2003 pump description is 230V AC, 40 minute RATED,Run Dry, Utility Puppy, 20 GPM, 1-1/2" BSP
- JABSCO p/n: 53081-2003 pump description is 230V AC, CONTINUOUS RATED, Run Dry, Utility Puppy, 20 GPM, 1-1/2" BSP
CROSS-REFERENCE MODEL(S) LIST:
NOTE : Models that start with a 2 for the second group of numbers (EG. 23920-2423) Are European standard, BSP Threads.
NOTE : Models that start with a 9 for the second group of numbers (EG. 23920-9423) Are North American standard, NPT Threads.
NOTE : Many North American variants have been DISCONTINUED
JABSCO Model: North America 23920-2423 (Discontinued) is Replaced by JABSCO Model: European 23920-2323, NOTE : PORT TYPE HAS CHANGED, BSP
JABSCO Model: North America 23920-2213 (Discontinued) is Replaced by JABSCO Model: European 23920-2213, NOTE : PORT TYPE HAS CHANGED, BSP
JABSCO Model: North America 53041-2003 (Discontinued) is Replaced by JABSCO Model: European 53041-2003, NOTE : PORT TYPE HAS CHANGED, BSP
JABSCO Model: North America 53080-2003 (Discontinued) is Replaced by JABSCO Model: European 53081-2003, NOTE : PORT TYPE HAS CHANGED, BSP
_______________________
JABSCO RUN DRY UTILITY SERIES SELF-PRIMING PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- JABSCO ENTIRE UTILITY PUPPY SERIES MODEL NUMBER TABLE (View and/or Download)
- JABSCO UTILITY PUPPY 23920 SERIES RUN DRY SELF-PRIMING PUMP MANUAL (View and/or Download)
- JABSCO UTILITY PUPPY 23920 SERIES RUN DRY SELF-PRIMING PUMP DIMENSIONS (View and/or Download)
- JABSCO UTILITY PUPPY 53041 SERIES SELF-PRIMING PUMP DATASHEET (View and/or Download)
- JABSCO UTILITY PUPPY 53041 SERIES SELF-PRIMING PUMP MANUAL (View and/or Download)
- JABSCO UTILITY PUPPY 53081 SERIES SELF-PRIMING PUMP DATASHEET (View and/or Download)
- JABSCO UTILITY PUPPY 53081 SERIES SELF-PRIMING PUMP MANUAL (View and/or Download)
