Product Description
JABSCO Macerator Waste Pump, 12VDC, 24VDC, 115VAC
Uses: Black Water Macerator, Grey Water Particulate, Live-well or Baitwell.
Model: JABSCO 18590, 18690, 22130
FEATURES:
- Up to 14 Gallons per minute
- DC and AC motors
- 4 Blade cutter reducing all particulate below 1/8"
- DC models offer Run Dry protection
- Self-Priming to 5 feet
- Max Head 20 feet
- Inlet 1.5" MPT or BARB or 3" Slip-on - confirm with model selected
- Outlet 1" Barb
Jabsco Marine Macerator Plastic Waste Pumps are self-priming to 5 feet, and will empty a 30 gallon holding tank within 3 minutes. Duty cycle is 15 minutes with run dry protection built in with the DC models. Jabsco Macerators are also ideal for live-well or baitwell service as any ice, seaweed or scales can be easily reduced and passed through.

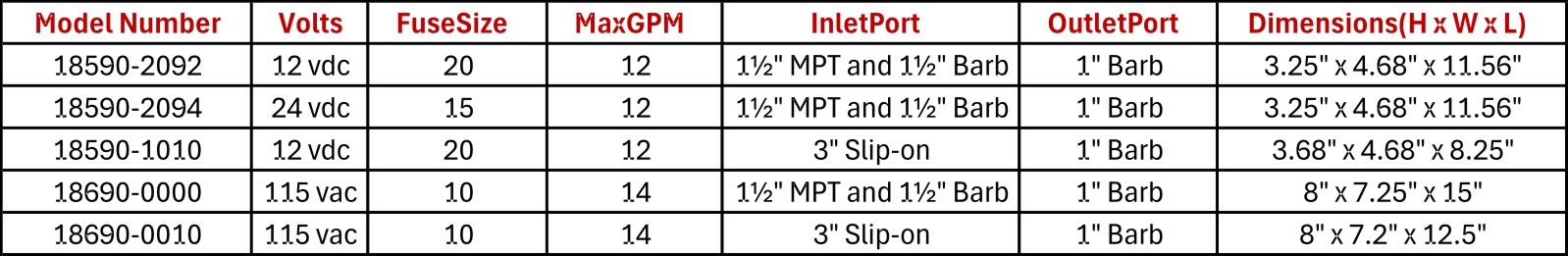

MODEL - MOTOR INFORMATION:
17246-1012 12 Volt EMC
17246-0001 24 Volt EMC
18744-0000 115 Volt AC
Wiring - REQUIREMENTS:
12 VDC, 16 AMPS, Fuse 20 AMP, #16 wire Minimum - See Datasheets for wiring by Run Length, Pg 2.
24 VDC, 8 AMPS, Fuse 15 AMP, #18 wire Minimum - See Datasheets for wiring by Run Length, Pg 2.
_______________________
Wet End:
Plastic Housing, Stainless Steel Cutter Plate, Nitrile Impeller
_______________________
JABSCO by XYLEM REPAIR KIT NUMBERS:
- Impeller - 6303-0003-P
- Service Kit - 18598-1000 (WET END Swap+) NOTE: Models PRIOR TO 2015 Have a different tear-down, See Service Manual.
- Cutter Plate - 37056-1000
- Gasket - 18596-1000
- AC Motor - 18690 Series - 93004-1840
- DC Motor - 12 VDC - 17246-1012
- DC Motor - 24 VDC - 17246-0001
CROSS-REFERENCE MODEL(S) LIST:
Supersedes or Replacement for
- JA 17260-0003, Replaced by JA 18590-2092
- JA 18590-0000, Superseded by JA 18590-2092
- JA 18590-1000, Superseded by JA 18590-2092
- JA 18590-0090, Superseded by JA 18590-2092
- JA 18590-0001, Superseded by JA 18590-2094
- JA 18590-1090, Superseded by JA 18590-2092
- JA 18590-1001, Superseded by JA 18590-2094
- JA 18590-1091, Superseded by JA 18590-2094
- JA 17460-0003, Replaced by JA 18690-0000
- JA 18744-0000 (MOTOR), Replaced by JA 93004-1840 (MOTOR)
- JA 18690-0230, Superseded by JE 22130-2721 (NOTE: BSP ports)
- JA 18690-0000, Matches JE 22130-2721 (NOTE: BSP ports)
