Product Description
MARCH SEAL-LESS CENTRIFUGAL MAGNETIC DRIVE PUMP (575V 60Hz or 230V/460V 50/60Hz)
Uses: Marine Air Conditioning, Chemical re-circulation, chemical transfer, bicarbonate systems, de-ionized water systems, refrigerators, scrubber systems, detergent mixers, carbon arc furnace cooling, silver recovery systems.
Model: TE-8S-MD
FEATURES:

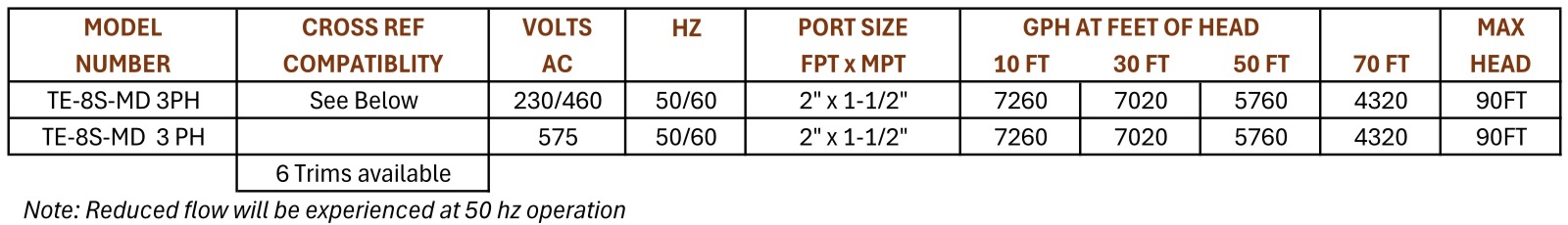

- UP to 7200 GPH
- Max Flow = 120 Gal/min at 30FT
- Max Head = 90FT (39psi)
- Up to 320,000 BTU
- 230V/460V 50/60hz or 575V 60hz Options
- Inlet: 2" MPT
- Outlet: 1-1/2" MPT
- Impeller Trim options to match a specific gravity requirement (See Below)
The March Model TE-8S-MD is an American industrial seal-less centrifugal magnetic drive pump. The magnetic drive design eliminates the conventional seal found in most pumps, reducing the chance for leaks. It is capable of generating a maximum flow of 120 Gallons per minute at 20 foot, and its maximum head is 90 Foot (39psi). It is available in 230/460 VAC 50/60 Hz. The standard pump wet end (the materials that come into contact with the solution) is composed of 316 Stainless Steel (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers) Carbon (Bushing).
The standard motor is a 3 Phase 208/230/460 VAC 5HP TEFC motor. The alternative motors can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The pump can tolerate a maximum internal pressure of 200 psi, and a maximum liquid temperature of 250 Fahrenheit or 121 Celsius. The March TE-8S-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and chemicals, acids or solvents.(See Chemical reference Chart below). If unsure of being suitable for your specific application, or any other questions before placing your order, please contact us for further assistance.
MOTOR INFORMATION:
0157-0169-1000 Motor 5HP, 1PH
Conduit Box, TEFC, IP55
60Hz: 1Ph 5 HP / 2.2 kW, 208-230V, 20.5-19 AMPS, 3450 RPM
0157-0065-1000 Motor 5HP, 3PH
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 5 HP / 3.7 kW, 230/460V, 11.8/5.9AMPS, 3450 RPM (Usable at 208V)
50Hz: 3Ph 5 HP / 3.7 kW, 380V, 7.14AMPS, 2850 RPM (Usable at 190/220V)
0157-0042-1000 Motor 5HP, 3PH, XP
Conduit Box, TEFC, IP55, VFD Capable, Explosion Proof
60Hz: 3Ph 5 HP / 3.7 kW, 230/460V, 11.8/5.9AMPS, 3450 RPM (Usable at 208V)
50Hz: 3Ph 5 HP / 3.7 kW, 380V, 7.14AMPS, 2850 RPM (Usable at 190/220V)
_______________________
60Hz Performance:
Max Flow = 120 US GPM (454 LPM)
Max Head = 90 FT (27.4 M)
Power = 5 HP (3.7kW)
50Hz Performance:
Max Flow = 105 US GPM (400 LPM)
Max Head = 63 FT (19.3 M)
Power = 5 HP (3.7kW)
_______________________
Wet End:
316 Stainless Steel (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers) Carbon (Bushing)
Max Internal Pressure: 200 PSI (13.7 bar)
Max Internal Temperature: 250 °F (121 °C)
IMPELLER TRIM OPTIONS FOR SPECIFIC GRAVITY APPLICATIONS: (ANY CHANGE FROM FULL SIZE IMP REDUCES FLOW)
5.187" IMP; SP. GR. 1.0-1.1 (FULL SIZE)
4.875" IMP;SP. GR. 1.0-1.2
4.687" IMP; SP. GR. 1.0-1.3
4.50" IMP; SP. GR. 1.0-1.5
4.250" IMP; SP. GR. 1.0-1.7
4.00" IMP; SP. GR. 1.0-1.9
3.750" IMP; SP. GR. 1.0-2.0
_______________________
MARCH OEM PART NUMBERS:
- March p/n: 0157-0030-0100 pump description is #TE-8S-MD 3PH 5HP 230V / 460V
- March p/n: 0157-0030-0200 pump description is #TE-8S-MD 3PH 5HP XP 230V / 460V
- March p/n: 0157-0104-0300 pump description is #TE-8S-MD 3PH 5HP 575V
*All units are Metal Motor Bracket, Plastic Noryl Motor Bracket is Separate SKU*
CROSS-REFERENCE MODEL(S) LIST:
Unavailable
_______________________
MARCH PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- MARCH TE-8S-MD 3PH 5HP (230/460V) DIMENSIONAL DRAWING (View and/or Download)
- MARCH TE-8S-MD 60Hz CURVE (View and/or Download)
- MARCH TE-8S-MD 50Hz CURVE (View and/or Download)
- MARCH TE-8S-MD Series 8 Stainless Steel PUMP MANUAL (View and/or Download)
- MARCH PUMP GENERAL INSTALLATION GUIDE (View and/or Download)
- MARCH SAFETY INSTRUCTIONS & PREVENTIVE MAINTENANCE GUIDE (View and/or Download)
_______________________
OTHER CHEMICAL PUMPING OPTIONS - SPECIAL MODIFICATION MAY BE REQUIRED
This pump may have to be modified to pump specific gravity, viscosity, or elevated temperatures different then ambient water. The March TE-8S-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and chemicals, acids or solvents. Please refer the the March Pumps Chemical Resistance Guide for further reference . .
