Product Description
MARCH SEAL-LESS CENTRIFUGAL MAGNETIC DRIVE PUMP (115V/230V 50/60Hz or 230V460V 50/60Hz)
Uses: Marine Air Conditioning, Chemical re-circulation, chemical transfer, bicarbonate systems, de-ionized water systems, refrigerators, scrubber systems, detergent mixers, carbon arc furnace cooling, silver recovery systems.
Model: TE-6T-MD
FEATURES:
- UP to 2100 GPH
- Max Flow = 38 Gal/min at 1FT
- Max Head = 49FT (21.2psi)
- Up to 128,000 BTU
- 115V/230V or 230V/460V 50/60hz Options
- Inlet: 1"FPT
- Outlet: 3/4"MPT
- Impeller Trim options to match a specific gravity requirement (See Below)
The March Model TE-6T-MD is an American submersible seal-less centrifugal magnetic drive pump and is standard equipment on a majority of systems up to 128,000 BTU. The magnetic drive design eliminates the conventional seal found in most pumps, reducing the chance for leaks. It is capable of generating a maximum flow of 38 Gallons per minute at 10 foot, and its maximum head is 49 Foot (21psi). It is available in 115 or 230 VAC 50/60 Hz. The standard pump wet end (the materials that come into contact with the solution) is composed of Polypropylene (Impeller), Ryton (Front Housing, Rear Housing), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Ryton/Teflon/Carbon (Bushing). Pump head (wet end) kits are available.
The standard motor is a 1 Phase 115V or 230V 0.5 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The pump can tolerate a maximum internal pressure of 50 psi, and a maximum liquid temperature of 190 Fahrenheit or 87 Celsius. The March TE-6T-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and chemicals, acids and solvents(See Chemical reference Chart below). If unsure of being suitable for your specific application, or any other questions before placing your order, please contact us for further assistance.
MOTOR INFORMATION:
0153-0158-1000 Motor (Single Phase) WEG
Conduit Box, TEFC, IP55
60Hz: 1Ph 0.5HP/0.37kW, 115-208/230V, 7.4-3.7 AMPS, 3450RPM
50Hz: 1Ph 0.375HP/0.28kW, 115-208/230V, 8.6-4.3 AMPS, 2850RPM
0153-0135-1000 Motor (Three Phase) AL BKT WEG
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 0.5HP/0.37kW, 208/230/460V, 1.7-0.87 AMPS, 3450RPM
50Hz: 3Ph 0.5HP/0.37kW, 190/380V, 1.9/0.9 AMPS, 2850RPM
0153-0151-XXXX Motor (Three Phase) WEG 3/4HP
SEE MODEL: MA TE-6T-MD-3PH 3/4HP WEG
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 3Ph 0.75HP/0.55kW, 208/230/460V, 3450RPM
50Hz: 3Ph 0.75HP/0.55kW, 190/380V, 2850RPM
_______________________

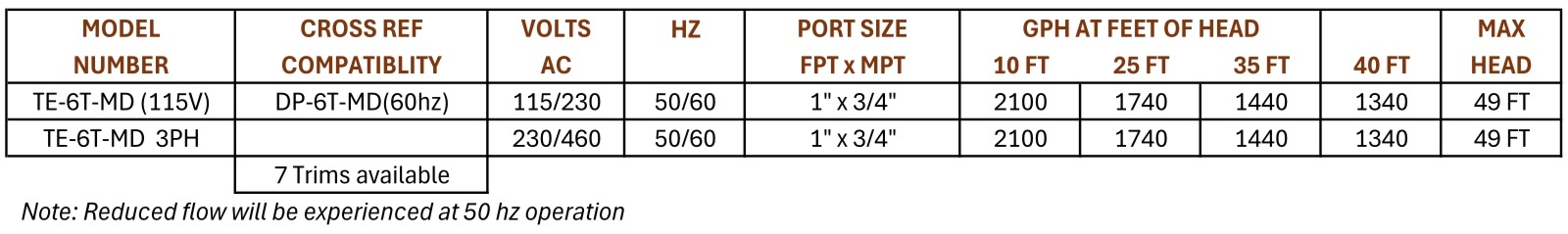

60Hz Performance:
Max Flow = 38 US GPM (144 LPM)
Max Head = 49 FT (15 M)
Power = 0.5 HP (0.37kW)
50Hz Performance:
Max Flow = 30 US GPM (113.5 LPM)
Max Head = 36 FT (11 M)
Power = 0.375 HP (0.279kW)
_______________________
Wet End:
Polypropylene (Impeller), Ryton (Front Housing, Rear Housing), Viton (O-Ring), Ceramic (Shaft, Thrust Washers), Ryton/Teflon/Carbon (Bushing)
Max Internal Pressure: 50 PSI (3.4 bar)
Max Internal Temperature: 190 °F (87 °C)
IMPELLER TRIM OPTIONS FOR SPECIFIC GRAVITY APPLICATIONS: (ANY CHANGE FROM 3.5" IMP REDUCES FLOW)
3.5" IMP; SP. GR. 1.0-1.1 (FULL SIZE)
3.375" IMP;SP. GR. 1.0-1.2
3.250" IMP; SP. GR. 1.0-1.3
3.125" IMP; SP. GR. 1.0-1.5
3.0" IMP; SP. GR. 1.0-1.7
2.87" IMP; SP. GR. 1.0-1.9
2.75" IMP; SP. GR. 1.0-2.0
_______________________
MARCH OEM PART NUMBERS:
- March p/n: 0153-0163-0100 pump description is #TE-6T-MD WEG 115V / 230V
- March p/n: 0153-0151-0100 pump description is #TE-6T-MD 3PH AL BKT WEG 230V / 460V
- March p/n: 0153-0151-XXXX pump description is #TE-6T-MD 3PH WEG 3/4HP 230V / 460V
- March p/n: 0153-0112-0100 pump description is #TE-6T-MD 1HP XP 115V / 230V
- March p/n: 0153-0113-0100 pump description is #TE-6T-MD 3PH 1HP XP 230V / 460V
- March p/n: 0153-0185-0100 pump description is #TE-6T-MD 3PH .5HP 575V
CROSS-REFERENCE MODEL(S) LIST:
Matches March:MA DP-6T-MD OBS, MA 0153-0002-0100, MA 0153-0002-0300, MA 153-0002-0200
_______________________
MARCH PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- MARCH TE-6T-MD WEG (115/230V) DIMENSIONAL DRAWING(View and/or Download)
- MARCH TE-6T-MD WEG 3PH (230/460V) DIMENSIONAL DRAWING (View and/or Download)
- MARCH TE-6T-MD WEG and TE-6T-MD WEG 3PH CURVE (View and/or Download)
- MARCH TE-6T-MD WEG and TE-6T-MD WEG 3PH PUMP MANUAL (View and/or Download)
- MARCH TE-6T-MD WEG and TE-6T-MD 3PH PUMP MANUAL
- MARCH PUMP GENERAL INSTALLATION GUIDE (View and/or Download)
- MARCH SAFETY INSTRUCTIONS & PREVENTIVE MAINTENANCE GUIDE (View and/or Download)
_______________________
OTHER CHEMICAL PUMPING OPTIONS - SPECIAL MODIFICATION MAY BE REQUIRED
This pump may have to be modified to pump specific gravity, viscosity, or elevated temperatures different then ambient water. The March TE-6T-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and chemicals, acids and solvents. Please refer the the March Pumps Chemical Resistance Guide for further reference . .
