Product Description
MARCH SEAL-LESS CENTRIFUGAL MAGNETIC DRIVE PUMP (115V 50/60Hz or 230V 50/60Hz)
Uses: Marine Air Conditioning and Fountains
Model: TE-5C-MD WEG
FEATURES:
- UP to 1020 GPH
- Max Flow = 18 GPM
- Max Head = 29FT (11.7psi)
- Up to 48,000 BTU
- 115V or 230V 50/60hz Options
- Inlet: 1"FPT
- Outlet: 1/2"MPT
The March Model TE-5C-MD is an American submersible seal-less centrifugal magnetic drive pump used on cooling systems up to 48,000 BTU. The magnetic drive design eliminates the conventional seal found in most pumps, reducing the chance for leaks. It is capable of generating a maximum flow of 18 Gallons per minute at 4 foot, and its maximum head is 29 Foot (11.7psi). It is available in 115 or 230 VAC 50/60 Hz. The standard pump wet end (the materials that come into contact with the solution) is composed of Polypropylene (Front and Rear Housing, Impeller), Vitron (O-Ring), Ceramic (Shaft, Thrust Washers). Pump head (wet end) kits are available and easy to replace with only a screwdriver (please contact us if kits are needed)
The standard motor(s) are a 1 Phase 115V or 230V 0.2HP TEFC motor or 3PH 230/460V IEC TEFC motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The pump can tolerate a maximum internal pressure of 50 psi, and a maximum liquid temperature of 190 Fahrenheit or 87 Celsius. The March TE-5C-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and chemicals, acids or solvents. If unsure of being suitable for your specific application, or any other questions before placing your order, please contact us for further assistance.
MOTOR INFORMATION:
0150-0213-1000 Motor
Conduit Box, TEFC, IP44
60Hz: 1Ph 0.2HP/0.149kW, 115/230V, 2.6/1.3 AMPS, 3450 RPM
50Hz: 1Ph 0.2HP/0.149kW, 110/220V, 2.4/1.2 AMPS, 2850 RPM
0150-0218-1000 Motor
Conduit Box, TEFC, IP55 (Not VFD Capable)
60Hz: 3Ph 0.17HP/0.12kW, 230/460V, 0.7/0.35 AMPS, 3450 RPM
50Hz: 3Ph 0.17HP/0.12kW, 230/460V, 0.7/0.35 AMPS, 2850 RPM
_______________________

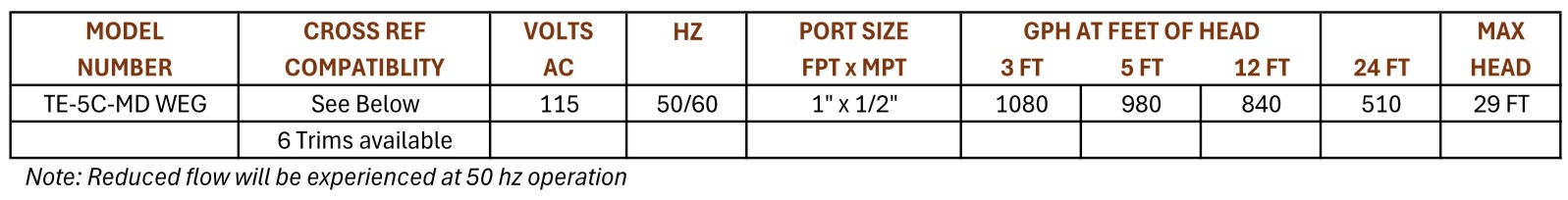

60Hz Performance:
Max Flow = 18 US GPM (68.1 LPM)
Max Head = 29 FT (8.85 M)
Power = 0.2 HP (0.149kW)
50Hz Peformance:
Max Flow = 15.9 US GPM (60 LPM)
Max Head = 20.7 FT (6.3 M)
Power = 0.2 HP (0.149kW)
_______________________
Wet End:
Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
Max Internal Pressure: 50 PSI (3.4 bar)
Max Internal Temperature: 190 °F (87 °C)
_______________________
MARCH OEM PART NUMBERS:
- March p/n: 0150-0214-0100 pump description is #TE-5C-MD WEG 115V / 230V
- March p/n: 0150-0220-0100 pump description is #TE-5C-MD-IEC 3 Phase
- March p/n: 0150-0026-0400 pump description is #TE-5C-MD 1 Phase w/h Explosion proof MTR
CROSS-REFERENCE MODEL(S) LIST:
Replaces March:MA AC-5C-MD (Standard Applications)
_______________________
MARCH PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- MARCH TE-5C-MD (115V) DIMENSIONAL DRAWING(View and/or Download)
- MARCH TE-5C-MD (230V) DIMENSIONAL DRAWING (View and/or Download)
- MARCH TE-5C-MD CURVE (View and/or Download)
- MARCH TE-5C-MD PUMP MANUAL (View and/or Download)
- MARCH PUMP GENERAL INSTALLATION GUIDE (View and/or Download)
- MARCH SAFETY INSTRUCTIONS & PREVENTIVE MAINTENANCE GUIDE (View and/or Download)
_______________________
OTHER CHEMICAL PUMPING OPTIONS - SPECIAL MODIFICATION MAY BE REQUIRED
This pump may have to be modified to pump specific gravity, viscosity, or elevated temperatures different then ambient water. The March TE-5C-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and chemicals, acids or solvents. Please refer the the March Pumps Chemical Resistance Guide for further reference . .
