Product Description
MARCH SUBMERSIBLE SEAL-LESS CENTRIFUGAL MAGNETIC DRIVE PUMP (115V 50/60Hz or 230V 50/60Hz)
Uses: Marine Air Conditioning and Fountains
Model: TE-5.5C-MD WEG
FEATURES:

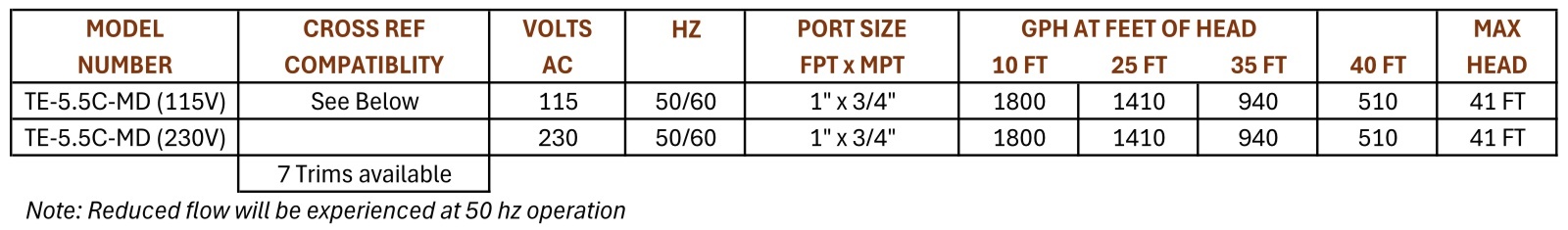

- UP to 1950 GPH
- Max Flow = 30 Gal/min at 1FT
- Max Head = 41FT (18psi)
- Up to 72,000 BTU
- Epoxy Encapsulated Motor
- 115V or 230V 50/60hz Options
- Inlet: 1"FPT
- Outlet: 3/4"MPT
The March Model TE-5.5C-MD is an American submersible seal-less centrifugal magnetic drive pump and is standard equipment on a majority of smaller systems up to 72,000 BTU. The magnetic drive design eliminates the conventional seal found in most pumps, reducing the chance for leaks. It is capable of generating a maximum flow of 30 Gallons per minute at 11 foot, and its maximum head is 41 Foot (18psi). It is available in 115 or 230 VAC 50/60 Hz. The standard pump wet end (the materials that come into contact with the solution) is composed of Polypropylene (Front and Rear Housing, Impeller), Vitron (O-Ring), Ceramic (Shaft, Thrust Washers). Pump head (wet end) kits are available and easy to replace with only a screwdriver (please contact us if kits are needed)
The standard motor is a 1 Phase 115V or 230V 0.125 Horsepower motor, which can be run on either 50 or 60 hertz (there are performance differences between the hertz options). The pump can tolerate a maximum internal pressure of 50 psi, and a maximum liquid temperature of 190 Fahrenheit or 87 Celsius. The March TE-5.5C-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, chemicals, acids or solvents. If unsure of being suitable for your specific application, or any other questions before placing your order, please contact us for further assistance.
MOTOR INFORMATION:
0151-00119-1000 Motor (Single Phase)
COnduit Box, TEFC, IP55
60Hz: 1Ph 0.33HP/0.25kW, 115-208/230V, 5.3-2.55/2.65 AMPS, 3450RPM
50Hz: 1Ph 0.33HP/0.25kW, 110/220V, 5.77/2.88 AMPS, 2850RPM
0151-0039-1000 Motor (Three Phase)
Conduit Box, TEFC, IP55, VFD Capable
60Hz: 1Ph 0.33HP/0.25kW, 230/460V, 1.18/0.59 AMPS, 3450RPM
50Hz: 1Ph 0.33HP/0.25kW, 190-220/380-415V, 1.26-1.11/0.63-0.59 AMPS, 2850RPM
_______________________
60Hz Performance:
Max Flow = 30 US GPM (114 LPM)
Max Head = 41 FT (12.5 M)
Power = 0.33 HP (0.25kW)
50Hz Peformance:
Max Flow = 27 US GPM (102 LPM)
Max Head = 29.5 FT (9 M)
Power = 0.33 HP (0.25kW)
_______________________
Wet End:
Polypropylene (Front and Rear Housing, Impeller), Viton (O-Ring), Ceramic (Shaft, Thrust Washers)
Max Internal Pressure: 50 PSI (3.4 bar)
Max Internal Temperature: 190 °F (87 °C)
IMPELLER TRIM OPTIONS FOR SPECIFIC GRAVITY APPLICATIONS: (ANY CHANGE FROM FULL SIZE IMP REDUCES FLOW)
3.180" IMP; SP. GR. 1.0-1.1 (FULL SIZE)
3.062" IMP;SP. GR. 1.0-1.2
2.937" IMP; SP. GR. 1.0-1.3
2.812" IMP; SP. GR. 1.0-1.4
2.687" IMP; SP. GR. 1.0-1.5
2.562" IMP; SP. GR. 1.0-1.6
2.437" IMP; SP. GR. 1.0-1.8
2.375" IMP; SP. GR. 1.0-2.0
_______________________
MARCH OEM PART NUMBERS:
- March p/n: 0151-0124-0100 pump description is #TE-5.5C-MD WEG 115V / 230V
- March p/n: 0151-0027-0800 pump description is #TE-5.5C-MD 3 Phase 115V / 230V
- March p/n: 0151-0113-0100 pump description is #TE-5.5C-MD 1 Phase w/h Explosion proof MTR
- March p/n: 0151-0113-0200 pump description is #TE-5.5C-MD 3 Phase w/h Explosion Proof MTR
- March p/n: 0151-0148-0100 pump description is #TE-5.5C-MD 3 Phase 575V 0.5HP
CROSS-REFERENCE MODEL(S) LIST:
Matches March:MA WPC1500, MA 0151-0027-0100 (115V 3PH), MA 0151-0027-0500 (115V XP)
_______________________
MARCH PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- MARCH TE-5.5C-MD WEG (115/230V) DIMENSIONAL DRAWING(View and/or Download)
- MARCH TE-5.5C-MD WEG (230/460V) DIMENSIONAL DRAWING (View and/or Download)
- MARCH TE-5.5C-MD WEG CURVE (View and/or Download)
- MARCH TE-5.5C-MD WEG PUMP MANUAL (View and/or Download)
- MARCH TE-5.5C-MD XP PUMP MANUAL
- MARCH PUMP GENERAL INSTALLATION GUIDE (View and/or Download)
- MARCH SAFETY INSTRUCTIONS & PREVENTIVE MAINTENANCE GUIDE (View and/or Download)
_______________________
OTHER CHEMICAL PUMPING OPTIONS - SPECIAL MODIFICATION MAY BE REQUIRED
This pump may have to be modified to pump specific gravity, viscosity, or elevated temperatures different then ambient water. The March TE-5.5C-MD centrifugal magnetic drive pump is capable of handling fresh water, salt water, and chemicals, acids or solvents. Please refer the the March Pumps Chemical Resistance Guide for further reference . .
