Product Description

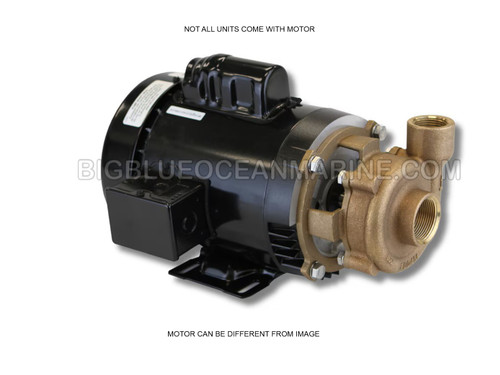

SCOT 35067 Marine Bronze Straight Centrifugal Pump (115V/230V 50/60Hz)
Uses: Marine Air Conditioning, de-ionized water systems, refrigerators, scrubber systems.
Model: SCOT 35067
LEAD TIME is 1-3 days with impeller changes
FEATURES:
- UP to 2000 GPH
- Max Flow = 35 Gal/min at 10FT
- Max Head = 49FT
- Up to 128,000 BTU
- 115V/230V 50/60hz Options
- Inlet: 1-1/4" NPT
- Outlet: 1" NPT
Scot pump Marine straight centrifugal pumps are built specifically for Marine air conditioning, refrigeration and cooling water circulation systems. Built with naval bronze and 303 stainless steel, Burna N rubber seals and a semi-open impeller to handle small particulates, Pump is built for continuous operation, heavy usage applications. The Pump End mounts to NEMA,JM frames with single phase 2 Pole wiring, TEFC standard.
Multiple Impeller sizes are available to match specific gravity or flow requirements.
Scot Pumps are widely available as direct replacement for many OEM cooling solutions on yachts, workboats, fishing trawlers or personal vessels.
MODEL - MOTOR INFORMATION:
48J or 56J NEMA FRAME; 2 Pole, single Phase, 115/230V, TEFC or ODP
_______________________
Wet End:
Bronze Impeller, NBR rubber seal, 303 Stainless Shaft.
Max Internal Temperature: 212 °F (100 °C) NBR Standard Seal
Max Internal Pressure: 75 PSI (5 BAR)
_______________________
SCOT by WILO REPAIR KIT NUMBERS:
- SCOT p/n: 116.000.153 (BUNA) Seal Kit is for Series 35065-2,35066-2,35067-2,35068-2
- SCOT p/n: 189.001.116 (BN-CARB/CM) Seal Kit is for Series 35065-2,35066-2,35067-2,35068-2
CROSS-REFERENCE MODEL(S) LIST:
Replacement for Oberdorfer Models: Series 107M, P035S
Replacement for Marine AIR Models: P700 (3.44", 48 Frame), P700Z (3.44", 48 Frame), P120 (3.00", 48 Frame), P100 (2.5", 48 Frame), P100Z (2.5", 48 Frame)
Replacement for Dometic Models: 340429
Replacement for Cruisair Models: PS2200BX (3.44", 48 Frame), PS1800BX (3.00", 48 Frame), PS1500BX (2.5", 48 Frame)
_______________________
SCOT PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- SCOT by WILO, 35067 Series DIMENSIONAL DRAWING AND SPECIFICATIONS(View and/or Download)
- SCOT by WILO, 35067 Series BRONZE PUMP INSTALLATION AND MAINTENANCE(View and/or Download)
