Product Description

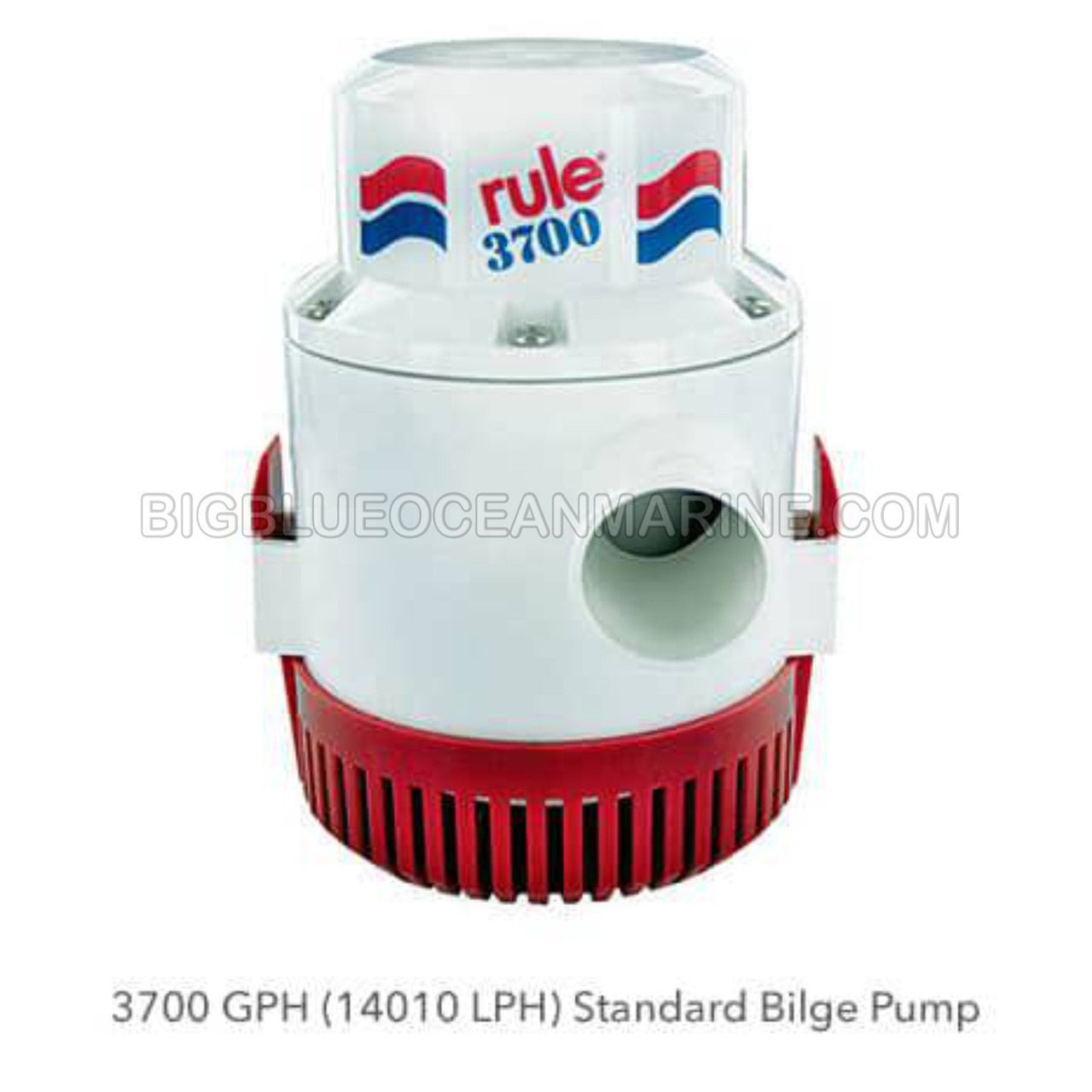

RULE by Xylem Standard 32V Bilge Pumps
Model:RULE
FEATURES:
- UP to 3700GPH
- Max Flow = 52 Gal/min at 1FT
- Max Head = 25 FT
- ABS Plastic
- Outlet: 3/4" - 1-1/2" Barb (Check Desired Model)
- 32v
- Pumps Require a Panel or Float Switch
Rule traditional bilge pumps are built with run dry protection, back flow prevention, built-in Thermal Cut-Off and a focus on low vibration, low noise.
These Pumps are built to the CE/ISO 8849 certification with Marine-grade blocked wiring. Easy clean strainers are snap-locked on the base of the pump housing. Discharge port fittings can be swapped from straight to 45 or 90 degree to accommodate location requirements.
MOTOR INFORMATION:
DC Voltage / Amperage / Fuse
See Chart above or Sheets Below.
Note: Minimum 16GA Wire Required for all models
Please Click HERE for 12V Models
Please Click HERE for 24V Models
_______________________
MATERIALS:
Wet End:
ABS Thermoplastic (Front Housing), Stainless Steel (Shaft)
Uses: Submerged
Note: Requires FLOODED installation. Fresh or SaltWater only
_______________________
RULE by Xylem OEM PART NUMBERS:
- Please See "Reference by GPH" Sheet Below
CROSS-REFERENCE MODEL(S) LIST:
When matching bilge pumps Big Blue Ocean Marine suggests that you check your Wiring Requirements, Voltage Requirements; then match for port size.
_______________________
RULE by Xylem STANDARD BILGE PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- RULE by Xylem 360GPH - 1100GPH BILGE PUMP (12/24VDC) MANUAL (View and/or Download)
- RULE by Xylem 360GPH - 2000GPH BILGE PUMP (12/24/32VDC) MANUAL (View and/or Download)
- RULE by Xylem 1500GPH - 4000GPH BILGE PUMP (12/24/32VDC) MANUAL (View and/or Download)
- RULE by Xylem QUICK REFERENCE FOR ALL SERIES BILGE PUMPS MANUAL (View and/or Download)
- RULE by Xylem BILGE PUMP QUICK DETAILS FLYER (View and/or Download)
- RULE by Xylem BILGE PUMP REFERENCE by GPH FLYER (View and/or Download)
- RULE by Xylem BILGE PUMP REPLACEMENT PARTS FLYER (View and/or Download)
- RULE by Xylem 360GPH BILGE PUMP DRAWING (View and/or Download)
- RULE by Xylem 500GPH BILGE PUMP DRAWING (View and/or Download)
- RULE by Xylem 800GPH BILGE PUMP DRAWING (View and/or Download)
- RULE by Xylem 1100GPH BILGE PUMP DRAWING (View and/or Download)
- RULE by Xylem RULE-A-MATIC FLOAT SWITCH SPECS (View and/or Download)
- RULE by Xylem RULE-A-MATIC SWITCH MODELS (View and/or Download)
_______________________
