Product Description
PRICE PUMP XT Series Marine/Industrial Straight Centrifugal Pump (115V/230V 50/60Hz)
Uses: Marine Air Conditioning, de-ionized water systems, refrigerators,agricultural wastewater systems, scrubber systems.
Model: PP XT100/150/200
LEAD TIME is 1-3 days with trim changes
FEATURES:
- UP to 24,000 GPH
- Max Flow = 400 Gal/min at 10FT
- Max Head = 155FT
- Up to 1,150,000 BTU
- 115V/230V, 380/460V 50/60hz Options
- Inlet: 1-1/2" - 3"NPT
- Outlet: 1" - 2" NPT
The XT Series of Close Coupled Centrifugal pump by Price Pump are used across Marine, Industrial, and Agricultural applications for chemical systems, solvents, wastewater, air-conditioning and refrigeration. Mounting to a NEMA 56C standard motor for single phase or three phase installations with multiple head materials to handle most varieties of fluids. Head material choices are Naval Bronze (AB), Cast Iron (AI), 316 Stainless Steel (SS) and mixes between them. Fluorocarbon Seals are standard, with optional double seals or Type 9 PTFE seal. Standard Units are horizontal installation but there is s vertical mount (XT-V) unit available for special applications.
The XT series pumps are built to handle large multi-unit systems or single systems with high discharge requirements or remote installations. Installation requires a flooded setup; pump is NOT self-priming.

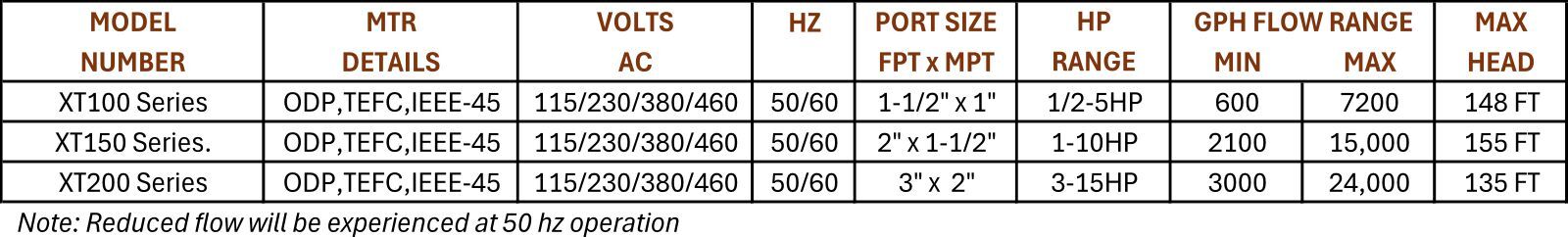

The full impeller diameter is 5.98” with the flow chart below assuming this setup for the flow & head indicated. Please check your specific-gravity and flow requirements in the specification sheets at the bottom if choosing an available impeller TRIM.
MODEL - MOTOR INFORMATION:
56C NEMA FRAME; 2 Pole, Single Phase or 3 Pole, Three Phase, 115/230V,380/460V, TEFC, ODP, IEEE-45
_______________________
Wet End:
Marine bronze, Cast Iron, 316SS, Type 21 Fluro standard seal (Type 9 PTFE or Type 21 Fluro-Double Seal are available)
Max Internal Temperature: 300 °F (149 °C) 21 Standard Seal
Max Internal Pressure: 75 PSI (5 BAR) BRONZE / 200 PSI (14 BAR) 316SS
_______________________
PRICE PUMP REPAIR KIT NUMBERS:
- PRICE PUMP p/n: 3920 Type 21 Flurocarbon Seal Kit is for XT Series
- PRICE PUMP p/n: 0309 Type 21 Flurocarbon Double Seal Kit is for XT Series
- PRICE PUMP p/n: 0123 Type 9 PTFE Seal Kit is for XT Series
- PRICE PUMP p/n: 0121 Buna Seal Kit is for XT Series
- PRICE PUMP p/n: 0329-1 5/8" Shaft Repair Kit is for XT Series
- PRICE PUMP p/n: 0328-1 7/8" Shaft Repair Kit is for XT Series
CROSS-REFERENCE MODEL(S) LIST:
Unavailable
_______________________
PRICE PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- PRICE PUMP, XT Series FLYER (View and/or Download)
- PRICE PUMP, XT Series VERTICAL DIMENSIONAL DRAWING AND SPECIFICATIONS(View and/or Download)
- PRICE PUMP, XT Series IMPERIAL DIMENSIONAL DRAWING AND SPECIFICATIONS(View and/or Download)
- PRICE PUMP, XT Series PARTS-LIST HORIZONTAL (View and/or Download)
- PRICE PUMP, XT Series PARTS-LIST VERTICAL (View and/or Download)
- PRICE PUMP, XT Series CENTRIFUGAL PUMP INSTALLATION AND MAINTENANCE(View and/or Download)
