Product Description
#JPR-SC50IF JMP Marine Scania Replacement Engine Cooling Raw Water / Seawater Pump
*Pump Model with Tapered Shaft Drive
Includes:
- JMP Scania Replacement Engine Cooling Pump #JPR-SC50IF
QTY: 1
Product Information:
| SPECIFICATION | JPR-SC50IF |
| Port Size | 2" Flange |
| Shaft Drive Type | Tapered Shaft Drive |
| Uses JMP Impeller p/n |
8301-01 (search 8301-01K) |
| Pump Size (LxWxH,mm) | 220 x 152 x 150 |
| Pump Weight (approx) | 18.0 lbs (8.18 kgs) |
| Replaces Genuine Scania Seawater Pump p/n | Scania 1785016, 1785018 |
| Engine Model(s): |
DI09, DI12, DI13, DI16 Series |
| Genuine Johnson Pump p/n |
Johnson 10-24308-01 (F9B-9), 10-24308-02 (F9B-905) |

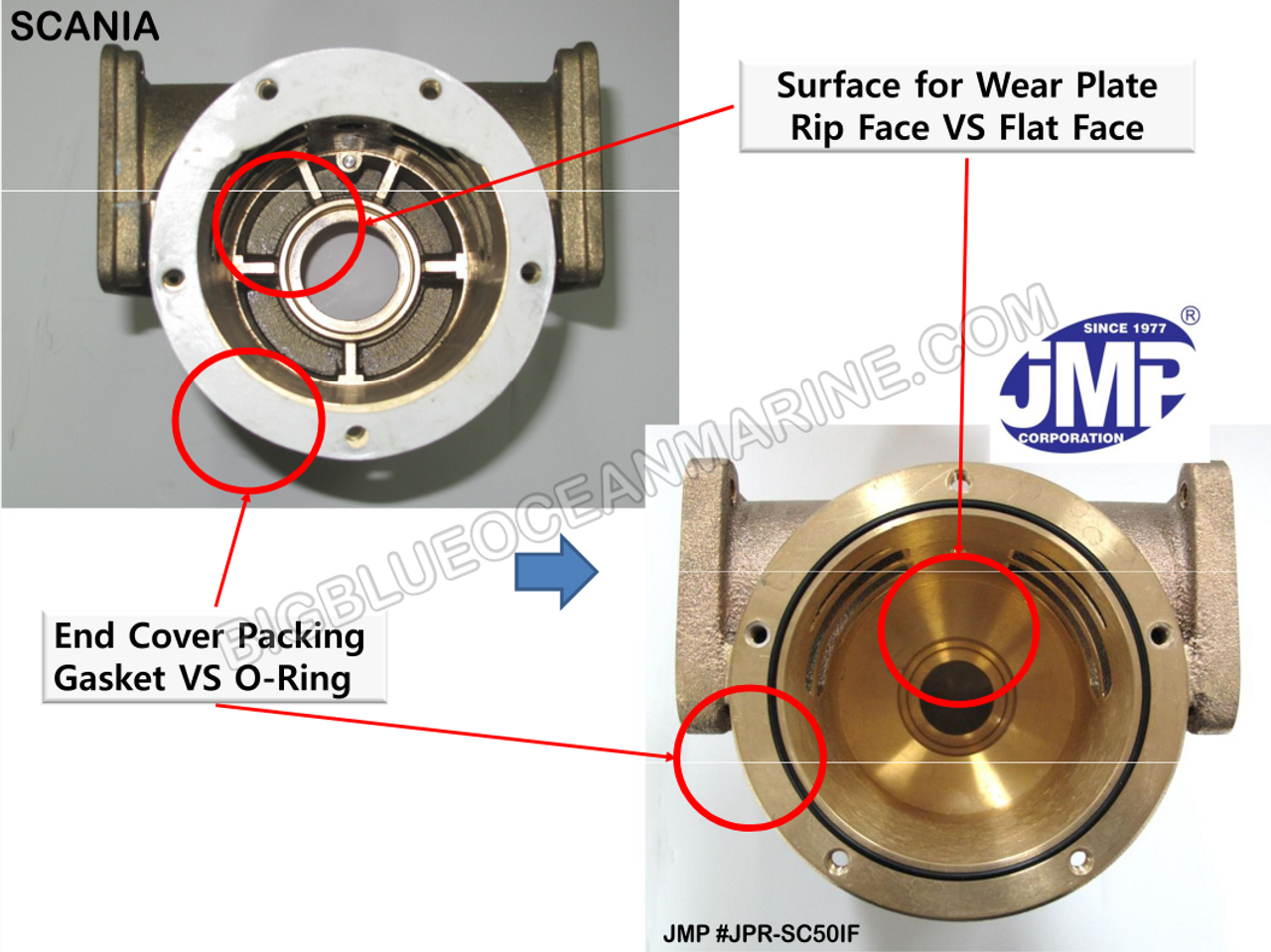

| Parts Internally Compatible to Genuine | NO (Internal Changes made for better performance & Reliability) |

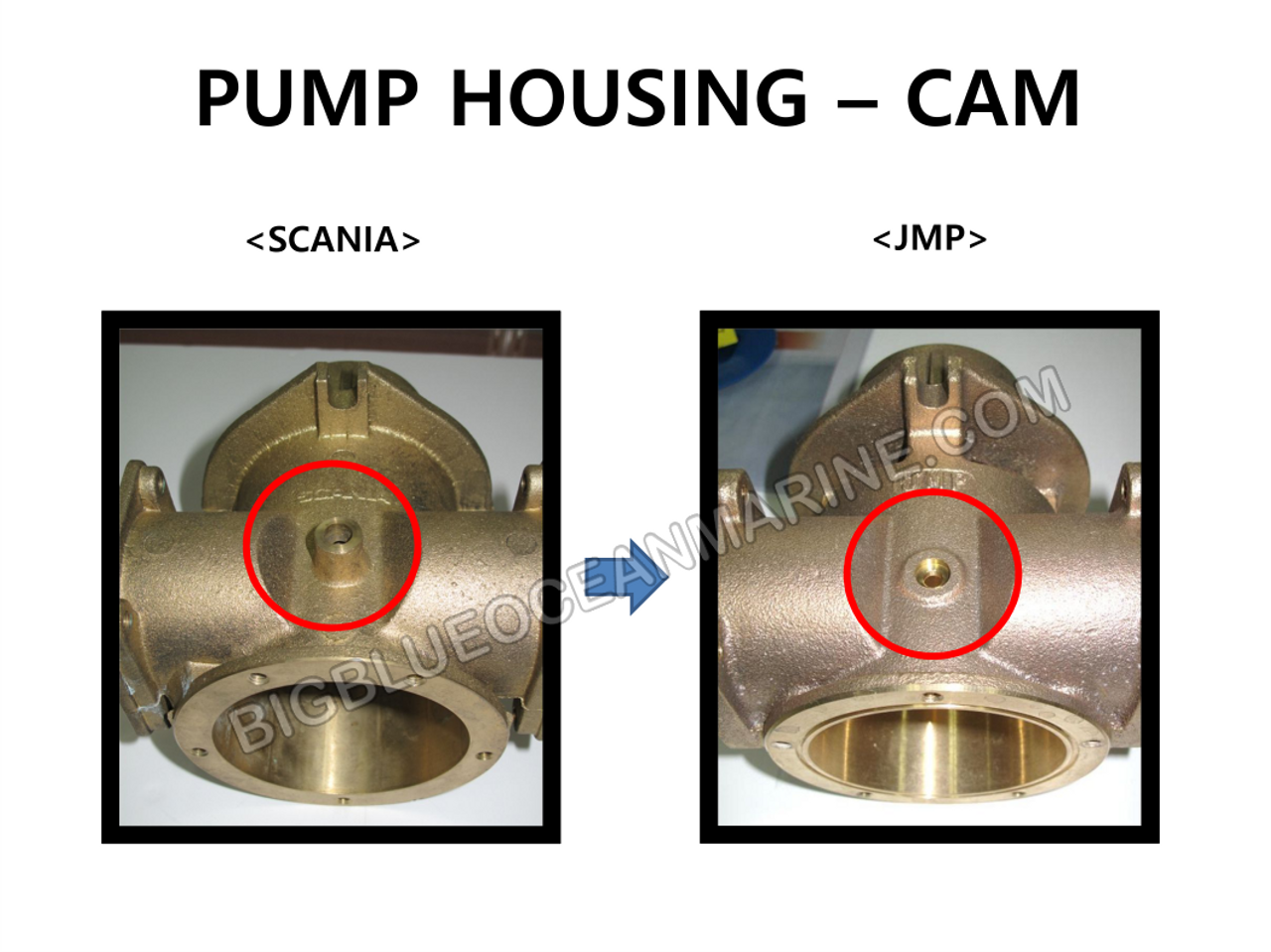

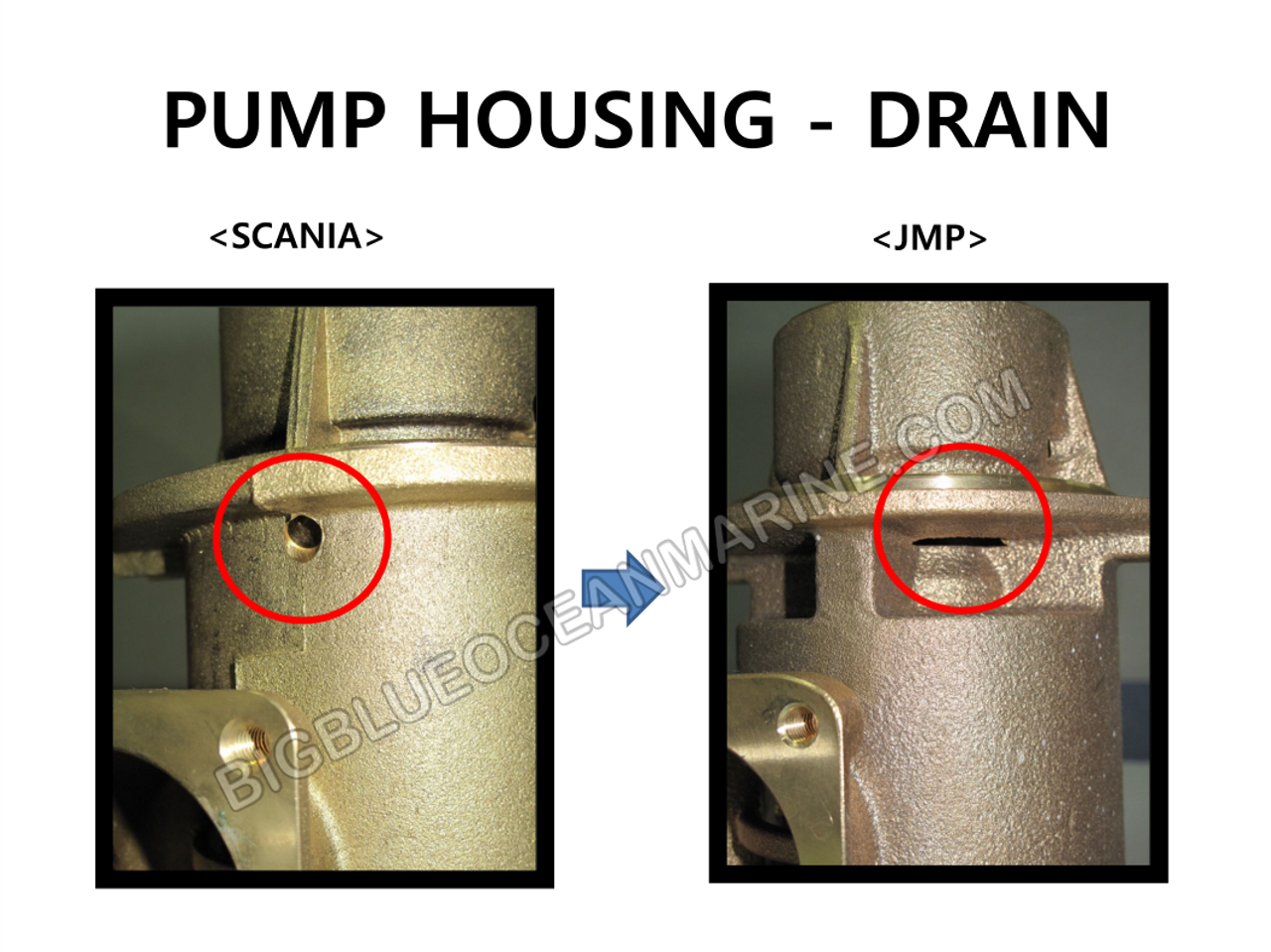

| Changes Made to Pump | Cover, Cam, Wear Plate, O-Ring for Cover, Shaft, Oil Seal |
| Major Service Kit (All Internal Parts) *Sold Separately |
JSK0028 (For JPR-SC50IF Only) |
| Minor Service Kit *Sold Separately |
JSM0033 (For JPR-SC50IF Only) |
Features:
- Universal Type (One for All Models)
- Strong Bronze Body (Heavy Duty Marine Grade Casting)
- High Performance and Long Life Flexible Impellers
- Marine Grade Shaft (3X Series Non-Magnetic)
- Screw with Hexa Head / Driver
- O-Ring End Cover Packing
- High Volume Flow Capacity
- Fast Flow Rate
- Forged Cam
JMP MARINE . . . "THE ONLY ONE"
Please note that shipping cost calculations are based on packaged weight which can be higher than the actual product weight.
SHIPPING COST SAVINGS - BULK ORDERS:
Possible discounts on total shipping costs for multiple unit orders; please contact sales department at sales@bigblueoceanmarine.com or by phone at 1 (250) 713-1018 for bulk order shipping quotes. Bulk orders are usually based on an order of 3 units or more.
Warranty Information
1 Year Manufactures Warranty. This is found in the "Terms & Conditions" section under "Warranties"Product Videos
