Johnson - SPX FLOW CM Series Magnetic Drive Circulating Pump (12/24 VDC)
Uses: Marine Refrigeration, Water Circulation, Fluid Transfer
Model: CM10 / CM30 / CM90
FEATURES:
- UP to 6.9 GPM
- Max Flow = 6.9 Gal/min at 1FT
- Max Head = 8 FT
- PPS/PPA ThermoPlastic
- Inlet: 5/8" or 3/4" Barb
- Outlet: 5/8 or 3/4" Barb
The CM Series circulating pump by Johnson - SPX FLOW is used extensively in Marine refrigeration as well as water circulation and fluid transfer applications across Marine, RV and Automotive.
The CM Series is a seal-less Mag-Drive continuous duty Pump, made from PPA thermoplastic and stainless steel. Unit requires flooded installation and is NOT self-priming. CM series pumps are 12 or 24 VDC with options of 3/4" or 5/8" BARB ports, Custom setups are possible as special orders.
MOTOR INFORMATION:
DC Standard Motor
Enclosed (IP67 Rated), Permanent magnet, ball bearing motor
AMP range 12V 0.9A - 3.0A
AMP range 24V 0.5A - 1.6A
Note: Regular flushing with water when handling chemicals will extend pump life.
_______________________
MATERIALS:
Wet End:
PPA Thermoplastic (Front Housing), Stainless Steel (Shaft), EPDM (O-Ring), PPS Thermoplastic (Impeller)
Uses: Open Air
Note: Requires FLOODED installation.
Max Internal Pressure: 2.2 PSI / 15 bar
Max Internal Temperature: 212 °F / 100 °C
_______________________
JOHNSON - SPX FLOW OEM PART NUMBERS:
- JOHNSON - SPX FLOW p/n: 10-24501-03 pump description is #CM10P7-1 12V, 5/8"
- JOHNSON - SPX FLOW p/n: 10-24501-04 pump description is #CM10P7-1 24V, 5/8"
- JOHNSON - SPX FLOW p/n: 10-24502-03 pump description is #CM10P7-1 12V, 3/4"
- JOHNSON - SPX FLOW p/n: 10-24502-04 pump description is #CM10P7-1 24V, 3/4"
- JOHNSON - SPX FLOW p/n: 10-24503-03 pump description is #CM30P7-1 12V, 5/8"
- JOHNSON - SPX FLOW p/n: 10-24503-04 pump description is #CM30P7-1 24V, 5/8"
- JOHNSON - SPX FLOW p/n: 10-24504-03 pump description is #CM30P7-1 12V, 3/4"
- JOHNSON - SPX FLOW p/n: 10-24504-04 pump description is #CM30P7-1 12V, 3/4"
CROSS-REFERENCE MODEL(S) LIST:

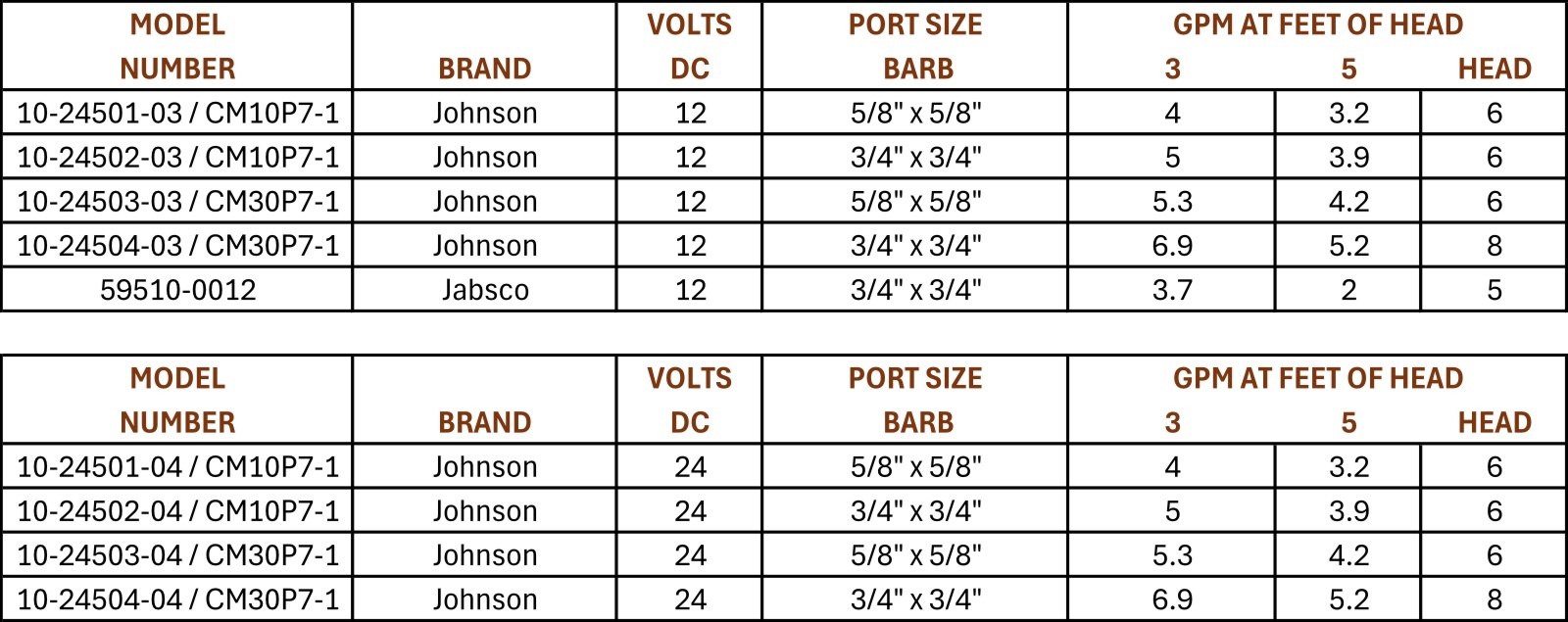

JABSCO Model: 59510-0012 Matches Johnson Model: 10-24502-03
_______________________
JOHNSON - SPX FLOW CM SERIES PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- JOHNSON - SPX FLOW CM10/30 Series (12/24VDC) FLYER (View and/or Download)
- JOHNSON - SPX FLOW CM90 Series (12/24VDC) FLYER (View and/or Download)
- JOHNSON - SPX FLOW PUMP SERIES PARTS MANUAL (ENGLISH/SVENSKA/DUETSCH/FRANCAIS/ITALIANO/ESPANOL) (View and/or Download)
_______________________
OTHER CHEMICAL PUMPING OPTIONS - SPECIAL MODIFICATION MAY BE REQUIRED
This pump may have to be modified to pump specific gravity, viscosity, or elevated temperatures different then ambient water. The CM series magnetic drive pump is capable of handling fresh water, salt water, and mild chemicals (antifreeze/coolants).
