Product Description
Johnson - SPX FLOW DC PUMPS FOR BILGE,DECK WASH, FUEL TRANSFER (12/24 VDC)
Model:Johnson FLEXIBLE IMPELLER
FEATURES:
- UP to 870GPH
- Max Flow = 14.5 Gal/min at 1FT
- Bronze Housing, Nitrile Impeller
- Self-Priming 10ft
- Thermal Overload Protection Built-in (Run-Dry Protection)
- Ports : 3/8" NPT / 1" BARB or 1/2" NPT / 3/4" NPT (VARIES BY MODEL)
The Johnson DC driven pumps are built for flexible duty across bilge, deck wash and fuel transfer (fuel oil or diesel ONLY), and can be run continuously at 7psi or combined with a vacuum switch for automatic operation. The flexible impeller is self-priming to 10 feet, and accommodates mild particulate easily. Intermittent duty can handle 15psi for a maximum of one hour.
MOTOR INFORMATION:

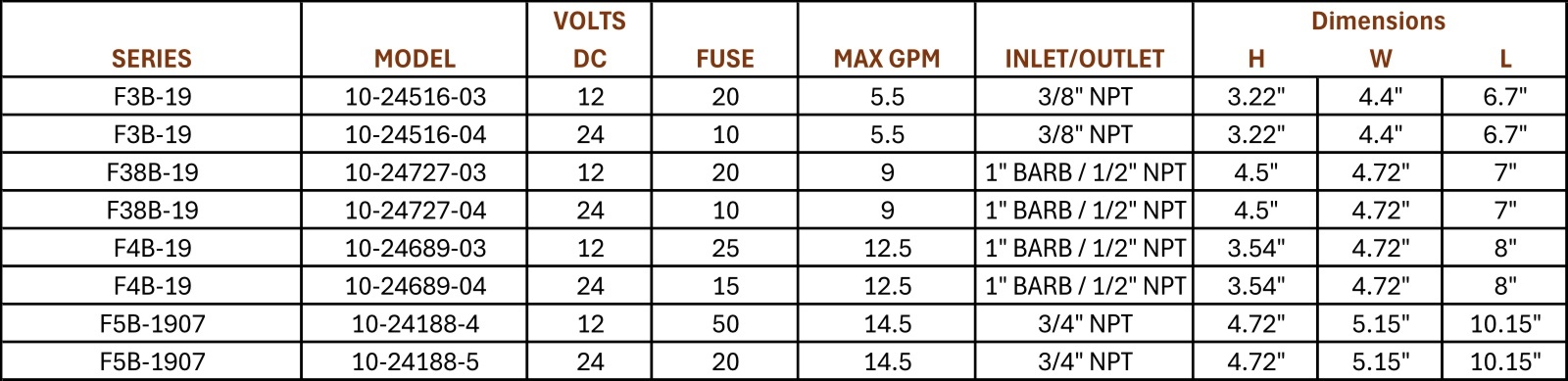

DC Voltage / Amperage / Fuse
See Chart above or Sheets Below.
Recommended Wire : 12V - 16 mm2, 24V - 6 mm2
_______________________
MATERIALS:
Wet End:
BRONZE Housing, Nitrile Impeller
Uses: Open-Air
MAX Pressure : Continuous Duty - 7 psi, Intermittent Duty 15 psi (Maximum 1 hour duration)
NOTE : CANNOT be used for light flammable liquids, ONLY for Fuel oil or Diesel
_______________________
JOHNSON - SPX FLOW OEM PART NUMBERS:
- JOHNSON - SPX FLOW p/n: 10-24886-01 Matches pump Model #F2P10-19, 12V, 4 GPM
- JOHNSON - SPX FLOW p/n: 10-24886-02 Matches pump Model #F2P10-19, 24V, 4 GPM
- JOHNSON - SPX FLOW p/n: 10-24516-03 Matches pump Model #F3B-19, 12V, 5.5 GPM
- JOHNSON - SPX FLOW p/n: 10-24516-04 Matches pump Model #F3B-19, 24V 5.5 GPM
- JOHNSON - SPX FLOW p/n: 10-24760-03 Matches pump Model #F3B-19 OIL CHANGE (REVERSIBLE), 12V, 5.5 GPM
- JOHNSON - SPX FLOW p/n: 10-24760-04 Matches pump Model #F3B-19 OIL CHANGE (REVERSIBLE), 24V, 5.5 GPM
- JOHNSON - SPX FLOW p/n: 10-24727-03 Matches pump Model #F38B-19, 12V, 9 GPM
- JOHNSON - SPX FLOW p/n: 10-24727-04 Matches pump Model #F38B-19, 24V, 9 GPM (OBSOLETE)
- JOHNSON - SPX FLOW p/n: 10-24689-03 Matches pump Model #F4B-19, 12V, 12.5 GPM
- JOHNSON - SPX FLOW p/n: 10-24689-04 Matches pump Model #F4B-19, 24V, 12.5 GPM
- JOHNSON - SPX FLOW p/n: 10-24188-4 Matches pump Model #F5B-1907, 12V, 14.5 GPM
- JOHNSON - SPX FLOW p/n: 10-24188-5 Matches pump Model #F5B-1907, 24V, 14.5 GPM (SPECIAL ORDER ONLY)
- JOHNSON - SPX FLOW p/n: 09-1077B-9 Impeller for Series : F2P10-19
- JOHNSON - SPX FLOW p/n: 09-843S-9 Impeller for Series : F3B-19, F3B-19 OIL CHANGE
- JOHNSON - SPX FLOW p/n: 09-824P-9 Impeller for Series : F38P-19, F4B-19
- JOHNSON - SPX FLOW p/n: 09-1027B-9 Impeller for Series : F5B-1907
CROSS-REFERENCE MODEL(S) LIST:
UNAVAILABLE
_______________________
JOHNSON - SPX FLOW DC FLEXIBLE IMPELLER SERIES PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- JOHNSON - SPX FLOW DC DRIVEN FLEXIBLE IMPELLER PUMPS (12/24VDC) FLYER (View and/or Download)
_______________________
---
