Product Description
GIANNESCHI CB SERIES BRONZE CENTRIFUGAL PUMP (230V 50/60Hz)
Uses: Marine Air Conditioning, water re-circulation, chemical transfer, refrigerators, scrubber systems, water pressure systems.
Model: CB22 Series
FEATURES:

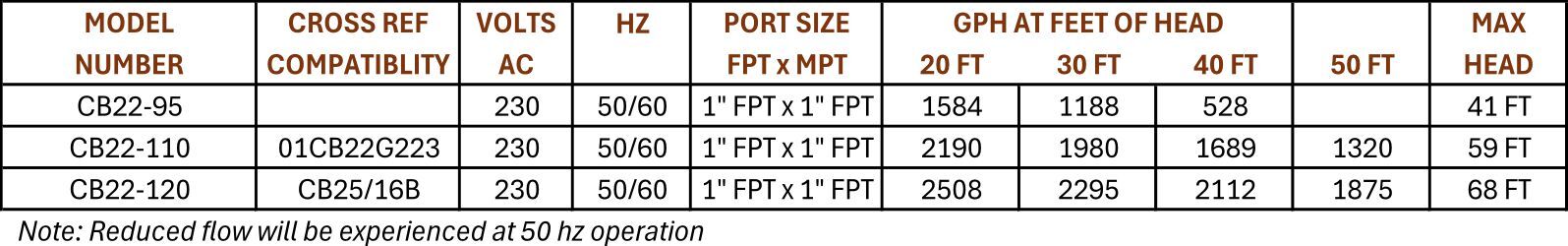

- UP to 2500 GPH
- Max Flow = 43Gal/min at 20FT
- Max Head = 68FT
- Up to 112,000 BTU
- 230V 50/60hz
- Inlet: 1" FPT
- Outlet: 1" FPT
Gianneschi is an Italian manufacturer for yachts and marine applications common throughout Europe; if your vessel was built in Europe you may have a Gianneschi pump on-board. As such the specifications for this brand are largely stated in metric.
The Gianneschi CB22 Series of Bronze centrifugal pumps is designed for water handling and air conditioning applications with continuous duty. Multiple motors are available from 0.55KW to 1.1KW power in single Phase. DC motors are available but are special Order; Please Contact if a DC motor is required.
The open bronze impeller is designed for clean fluids with slight particulates while providing medium pressure and continuous delivery. Ports are NPT (BSP) threaded and it is suggested use a 3-piece pipe union to allow ease of maintenance. The CB22 Series is NOT self-priming and must be installed below the fluid level.
This Series is NOT suitable for flammable fluids.
_______________________
Wet End:
Bronze Housing, Bronze Impeller, 316 Stainless steel shaft
_______________________
GIANNESCHI OEM PART NUMBERS:
- Gianneschi p/n: G139 pump description is #GIA CB 22-95 (230V MTR)
- Gianneschi p/n: G128 pump description is #GIA CB 22-120 (230V MTR)
- Gianneschi p/n: G133 pump description is #GIA CB25/16B (Matches CB22-120 1.1KW MTR)
- Gianneschi p/n: G134 pump description is #GIA CB25/16A (Matches CB22-120 230V/400V MTR)
- Gianneschi p/n: G129 pump description is #GIA CB 22-120 (230V/400V MTR)
- Gianneschi p/n: G127 pump description is #GIA CB 22-120 (24VDC MTR)
- Models G128, G129, G127 are Identical Output but a different MTR/VOLTAGE
- Models G128, G129, G127 are Identical Output but a different MTR/VOLTAGE
CROSS-REFERENCE MODEL(S) LIST:
Unavailable
_______________________
GIANNESCHI PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- GIANNESCHI CB22 SERIES DIMENSIONAL DRAWING, CURVES, OEM SKUs (View and/or Download)
