Product Description
Flowmax 100 Self-Priming Centrifugal Pump
Uses: Marine Air Conditioning, petroleum, exhaust fluid, bio-cides and fertilizers, as well as brine and calcium chloride systems.
Model: FMX100

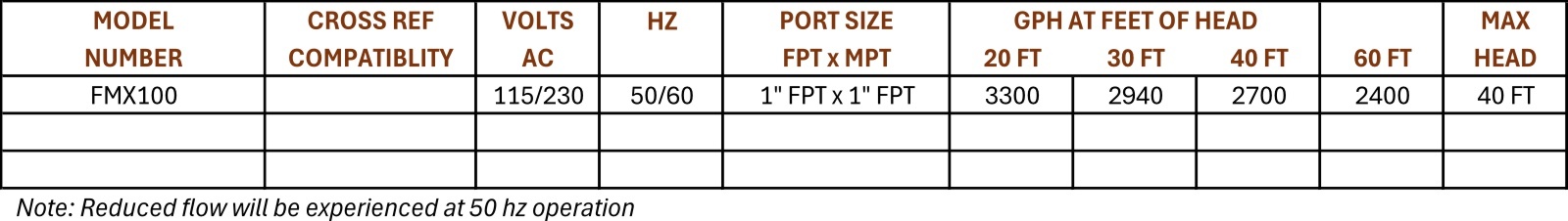

FEATURES:
- UP to 3300 GPH
- Max Flow = 55 Gal/min at 20FT
- Max Head = 55 FT
- Up to 144,000 BTU
- 115V/230V 50/60hz MTR(s)
- Inlet: 1" NPT
- Outlet: 1" NPT
- Priming Inlet 1/4" NPT
- Motor: 3/4 HP or 1HP
The Flowmax 100 (FMX100) series is a self-priming centrifugal pump constructed with 316 Stainless steel for all major parts,with a Vitron type 6A carbon/ceramic mechanical seal. Capable of nominal pressure at 60 FT with a maximum flow rate of 55GPM, this pump can suctions lift to 17 FT.
The FMX100 Pump is widely used in construction, industrial and marine uses, such as; petroleum, exhaust fluid, air conditioning, bio-cides and fertilizers, as well as brine and calcium chloride systems.
_______________________
Wet End:
316SS Impeller, Viton, 6A carbon/ceramic mechanical seal, 316SS shaft, 316SS Pump housing.
Primetime Models:
- Flowmax 100 Model: MP 39467 (STANDARD)
- Model: MP 39529 (IEC 80B34) is base model but adjusted port size 1" NPT x 1" NPT
_______________________
- Model: MP 39529 (IEC 80B34) is base model but adjusted port size 1" NPT x 1" NPT
Primetime REPAIR KIT NUMBERS:
There is no specific repair kit, parts are bundled as needed; see Sheets below for part Numbers
CROSS-REFERENCE MODEL(S) LIST:
Unavailable
_______________________
FMX 100 PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)

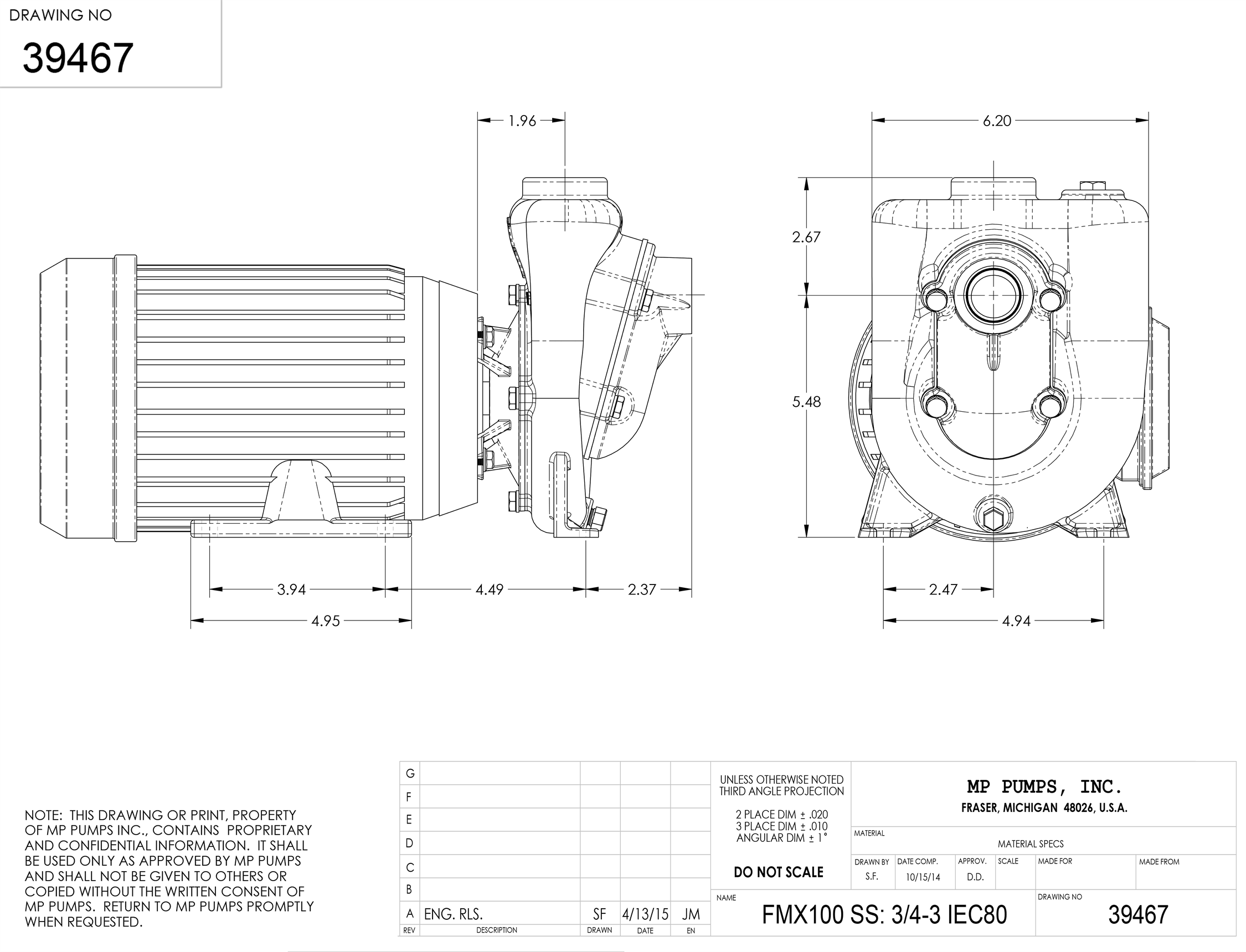

- MP PUMP FLOWMAX 100 Series (MP 39467) DIMENSIONAL DRAWING AND SPECIFICATIONS

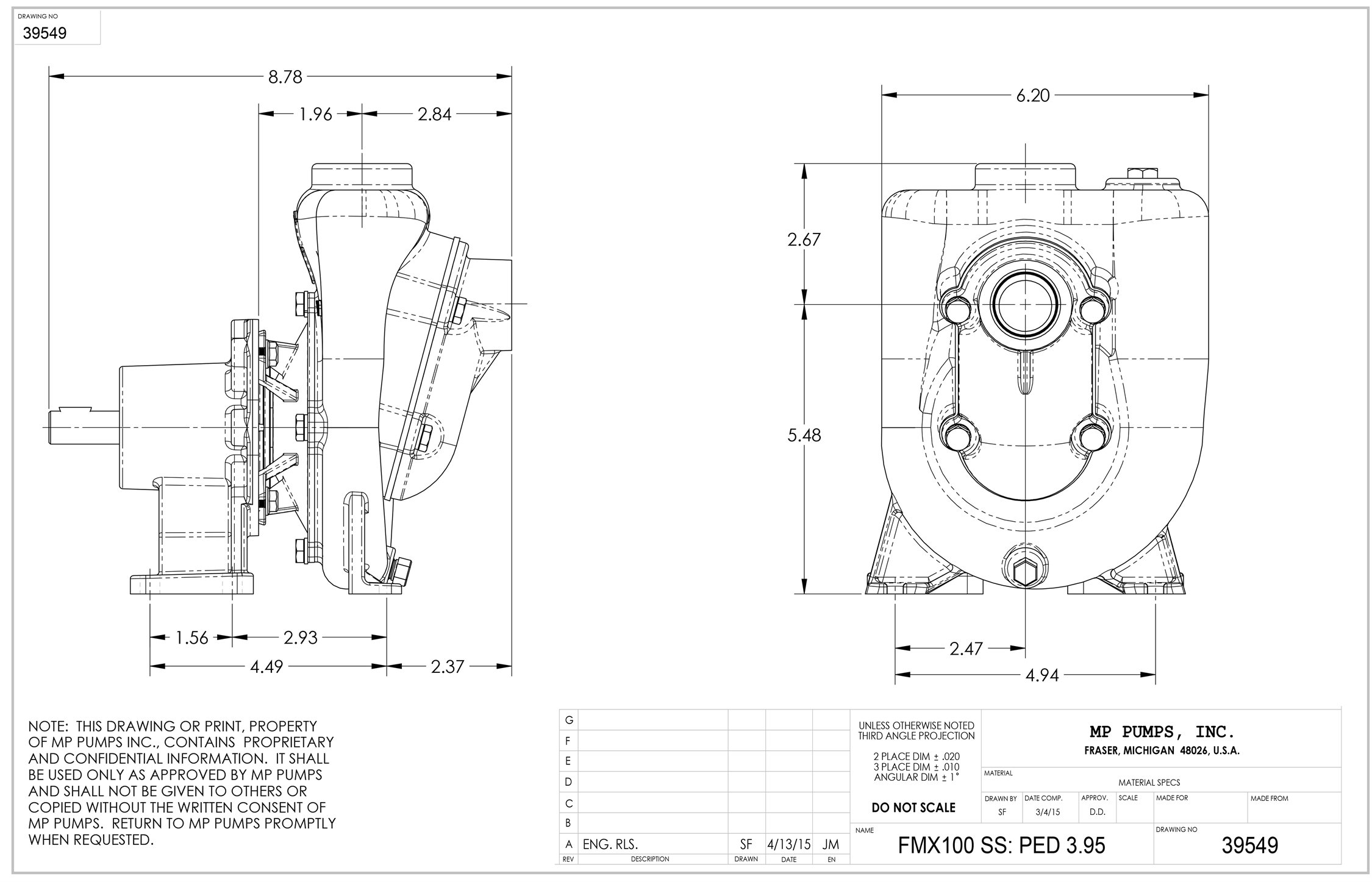

(View and/or Download) - MP PUMP FLOWMAX 100 Series (MP 39549) DIMENSIONAL DRAWING AND SPECIFICATIONS

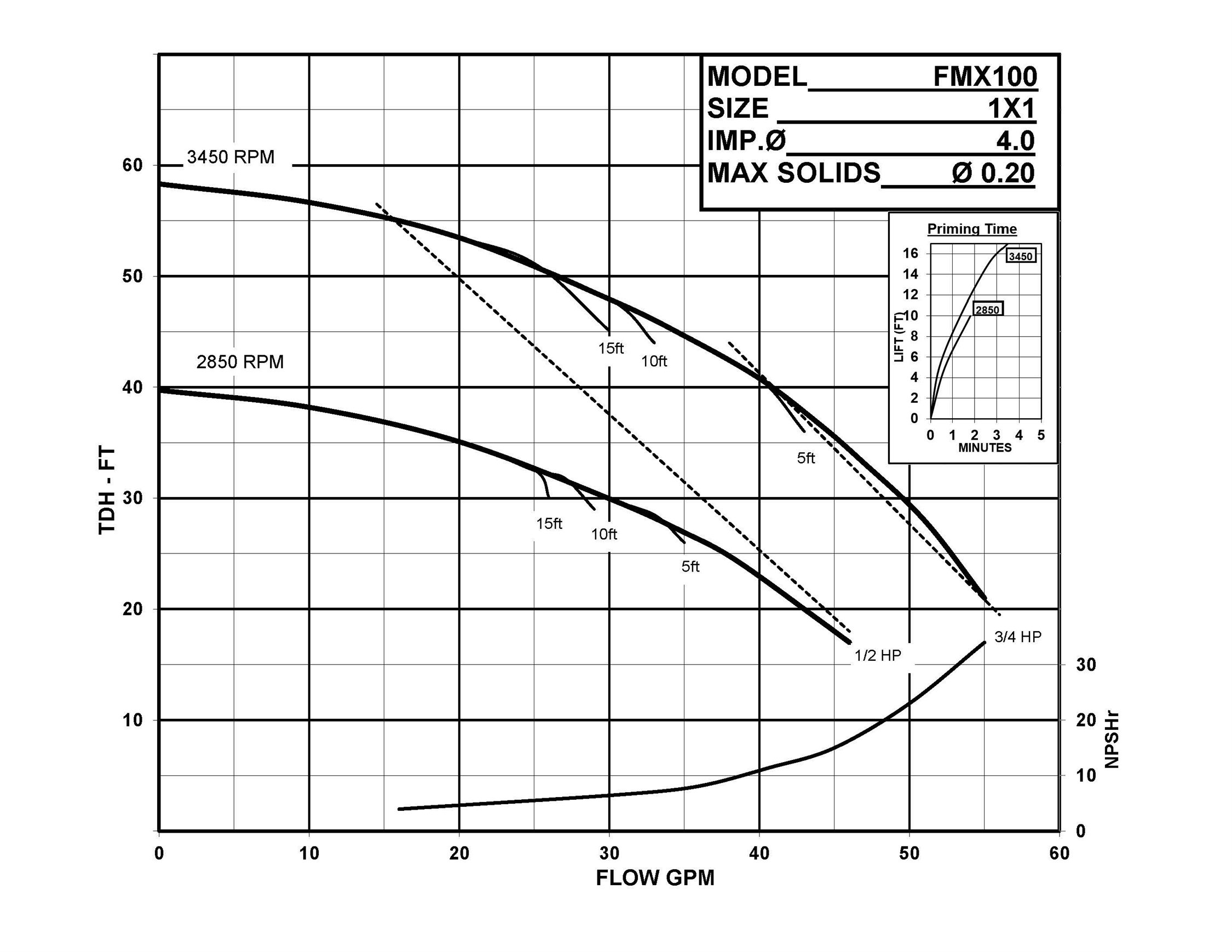

(View and/or Download) - MP PUMP FLOWMAX 100 Series PUMP CURVES (View and/or Download)
- MP PUMP FLOWMAX 100 Series FULL DATASHEET (View and/or Download)
- MP PUMP FLOWMAX 100 Series MAINTENANCE AND PARTS LIST (View and/or Download)
