Product Description
Flojet TRIPLEX Diaphragm Pumps, 12VDC, 24VDC, 115VAC
Uses: Fresh Water, Fountains, Dispensers, Washdown, Marine, Automotive, RV
Model: T151F,T152F,T15CF,T15FF,T15HF,T201F,T202F,T20FF,T20HF,03811,R3811,R3B21
FEATURES:
- Up to 3.5 Gallons per minute
- 12 VDC, 24 VDC Models
- 115 VAC
- UL, CSA, and CE models available
- Run Dry protection
- Self-Priming to 10 feet
- Variable Pressure switch settings (Select Models)
- 3/8" NPT Ports
NOTE: TRIPLEX Series DOES NOT Directly replace the earlier Duplex and Duplex 2 Series.
Flojet Triplex Series industrial diaphragm pumps are designed for versatility and wide application. Spraying, misting, pressure boosting water systems, cooling, brewing or mixing.

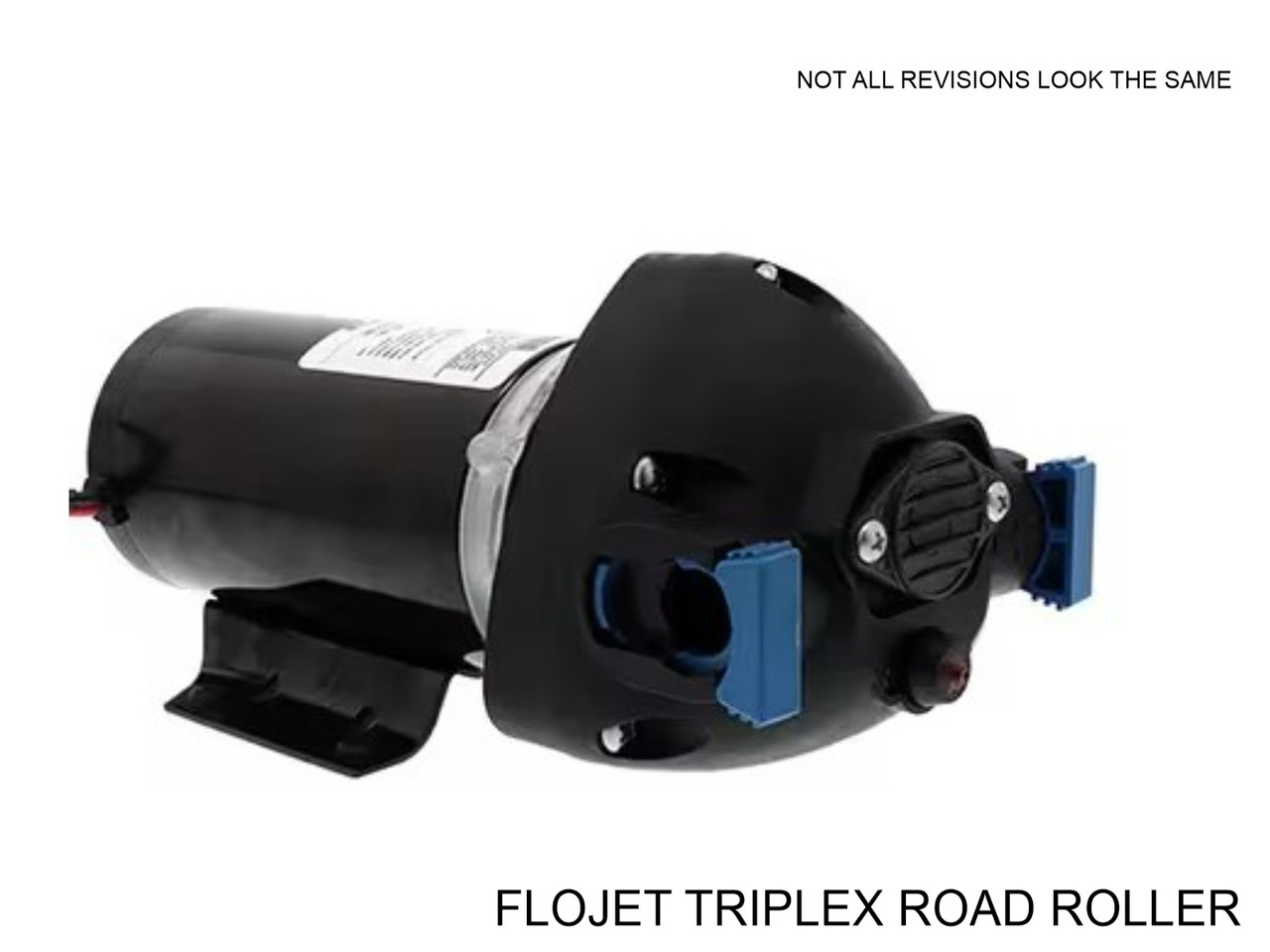

Triplex Series Standard operates up to 150PSI with a variety of valves and diaphragm, head materials for fluid transfer, mixing, spraying, filtration, dispensing and pressure boosting. Triplex Series Road Roller is designed specifically for an even spray across rollers to prevent materials from sticking, self priming to 10ft, with an even sheet spray across the target surface. The Road Rollers include a strainer to handle particulate that can be quickly cleaned or replaced.
The Triplex Series Compact line is designed specifically for agricultural uses; spraying, dispensing or transferring applications. This unit carries a sealed pressure switch and enclosed motor, ideal for confined locations.
The Triplex Series does NOT match directly with the Duplex models; Check your specifications and requirements.
MODEL - MOTOR INFORMATION:
ROAD ROLLER Variant : 12VDC, 24 VDC - Permanent Magnet DC
COMPACT Variant : 12 VDC, 24 VDC - Permanent Magnet DC TENV (non-ventilated)
STANDARD Variant : 12 VDC, 24 VDC, 36 VDC, 115 AC - Permanent magnet DC and Rectified AC
_______________________
Wet End:
Plastic Housing - Glass filled Nylon or Glass filled Poly, Diaphragm - Santoprene, Valve - Viton, BUNA, EPDM
_______________________
FLOJET REPAIR KIT NUMBERS: Extensive Variations Possible, Please Contact us with your Full Pump Model # and we can match Kits
- TRIPLEX Series Parts - See Datasheets
CROSS-REFERENCE MODEL(S) LIST:
- FJ 03811-032A Replaced by FJ 03811-033A
- FJ 03811-042A Replaced by FJ 03811-043A
- FJ 03811-132A Replaced by FJ 03811-133A
- FJ 03811-142A Replaced by FJ 03811-143A
_______________________
FLOJET PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- FLOJET by XYLEM, TRIPLEX SERIES MODEL NUMBER & SPECIFICATIONS TABLE (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES MANUAL (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES COMPACT (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES ROAD ROLLER DATASHEET (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES ROAD ROLLER DIMENSIONS (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES COMPACT DIMENSIONS (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES 50 PSI BYPASS DRAWING (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES 60 PSI CORDED DRAWING (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES 60 PSI SWITCH DRAWING (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES 100 PSI DRAWING (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES T15FF-31N7 DATASHEET (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES T15FF-36N7 DATASHEET (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES T20FF-318S DATASHEET (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES T20FF-368S DATASHEET (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES T20HF-318S DATASHEET (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES T151F-36N7 DATASHEET (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES T151F-76CS DATASHEET (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES T152F-31N7 DATASHEET (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES T152F-36N7 DATASHEET (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES T152F-71CS DATASHEET (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES T201F-31N7 DATASHEET (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES T201F-36N7 DATASHEET (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES T201F-318S DATASHEET (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES T201F-368S DATASHEET (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES T202F-318S DATASHEET (View and/or Download)
- FLOJET by XYLEM, TRIPLEX SERIES T202F-368S DATASHEET (View and/or Download)
