Product Description
Flojet Duplex, Duplex 2 Diaphragm Pumps, 12VDC, 24VDC, 115VAC
Uses: Fresh Water, Fountains, Dispensers, Washdown, Marine, Automotive, RV
Model: 02100, D363, D383, D21X, D313, D312, D71X, D213, D27X, D373, D323, D322, D133
FEATURES:
- Up to 2 Gallons per minute
- 12 VDC, 24 VDC Models
- 115 VAC, 230 VAC Models
- UL, CSA, and CE models available
- Run Dry protection
- Self-Priming to 6 feet (Unit D3131V5011A will Handle 8 Feet)
- Variable Pressure switch settings (Select Models)
- 3/8" NPT Ports / 1/2" Barb
NOTE: Both the Duplex Series (02100 Models) and the Duplex 2 Series are DISCONTINUED; These units are superseded by the TRIPLEX Series.
DUPLEX 2 Series units are available as supply lasts.
The original Flojet Duplex Series pumps were built for intermittent duty with freshwater or dispensing systems (without particulate) such as fountains and syrups, coffee, tea or alcohols. The Duplex 2 Series built on this success and expanded to include washdown, marine, automotive and RV applications with drinks, spraying, mild chemicals and general purpose. All models offer Run-Dry ability as well varied UL, CSA and CE certifications (varies by Model). Select Models have a variable pressure switch.
All Duplex Series units have a direct match replacement with the Duplex 2 Series - See cross-reference details.
The Triplex Series does NOT match directly with the Duplex models; Check your specifications and requirements on that Product page.

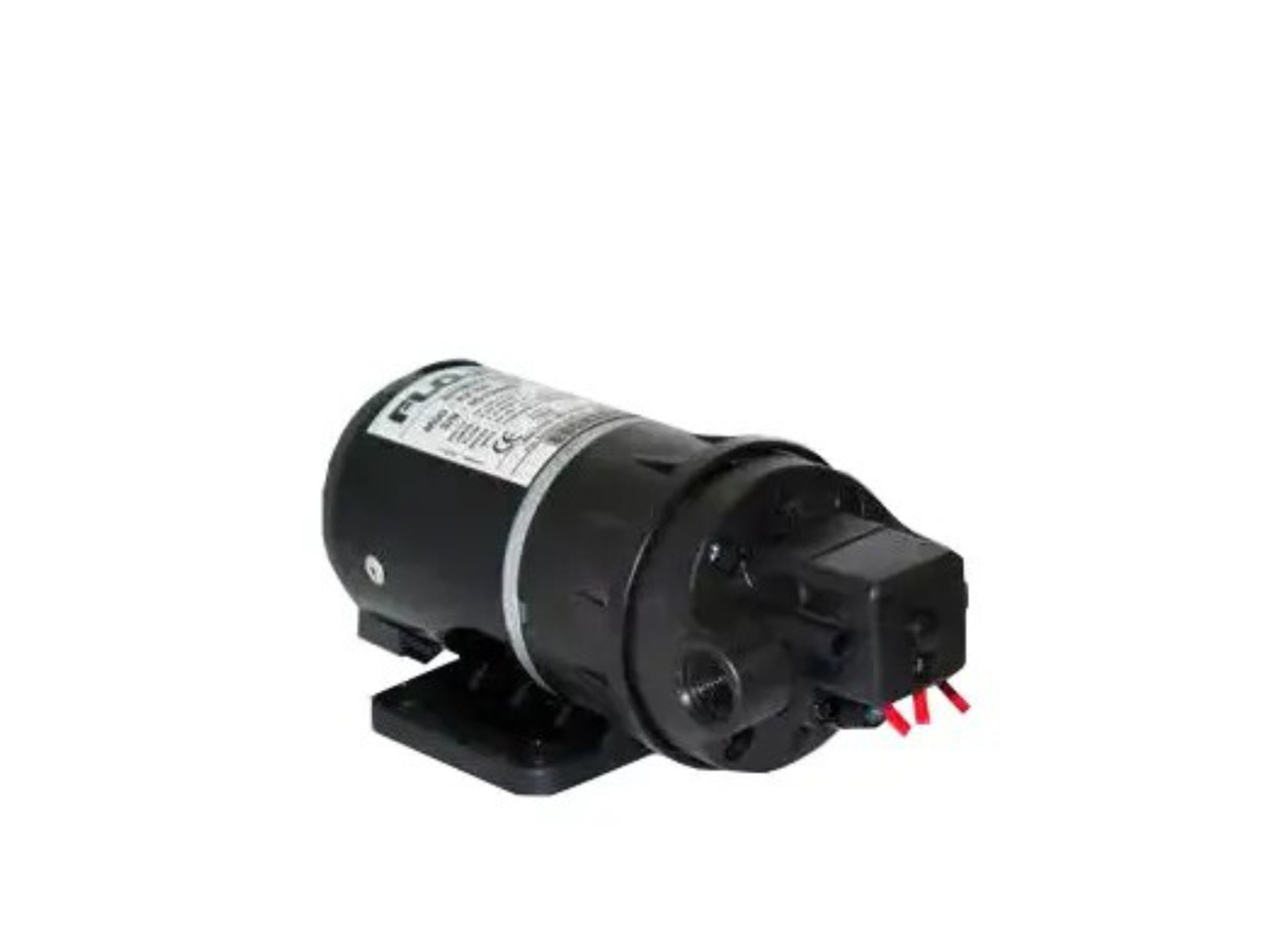

DUPLEX SERIES

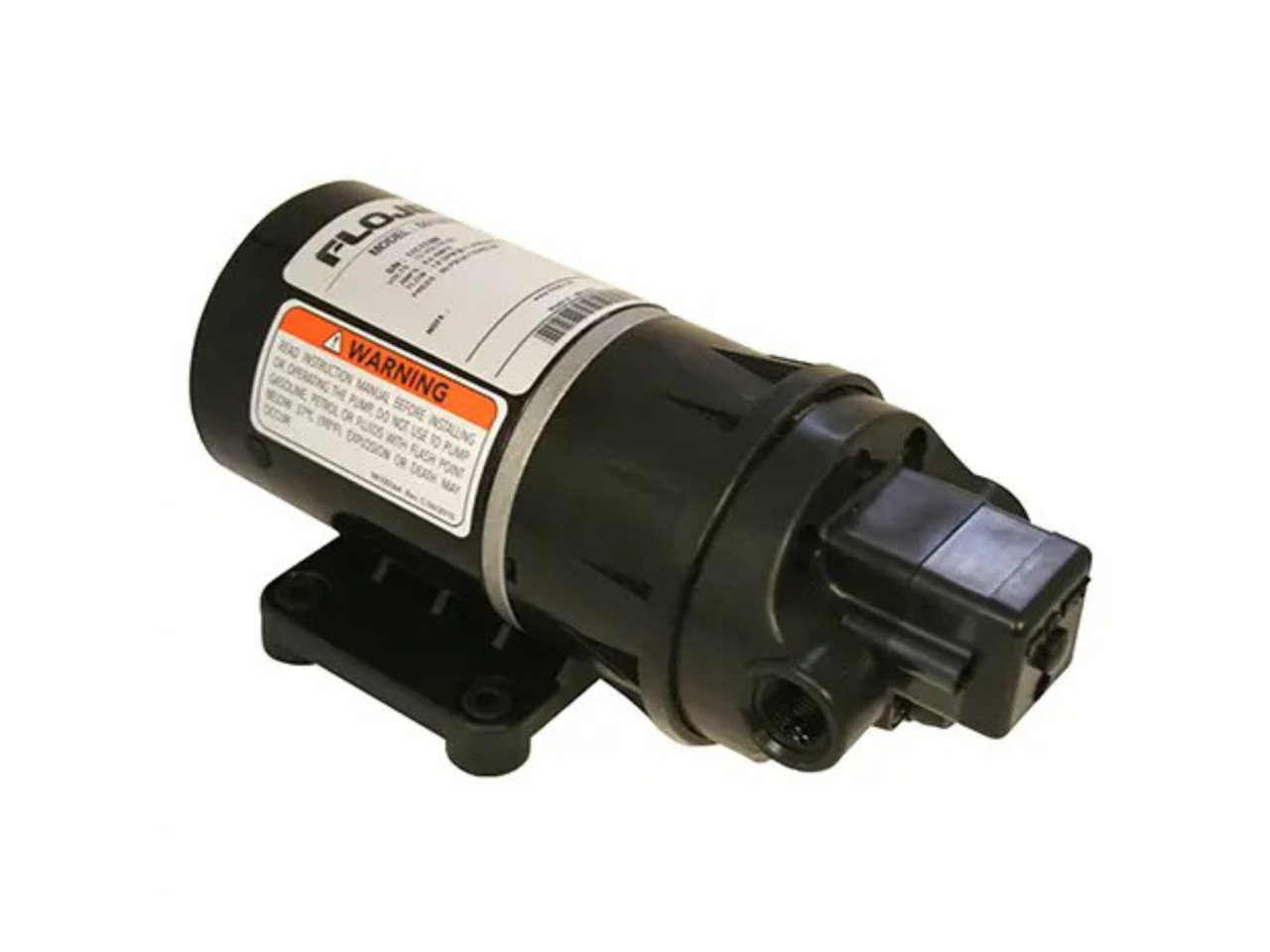

DUPLEX 2 SERIES

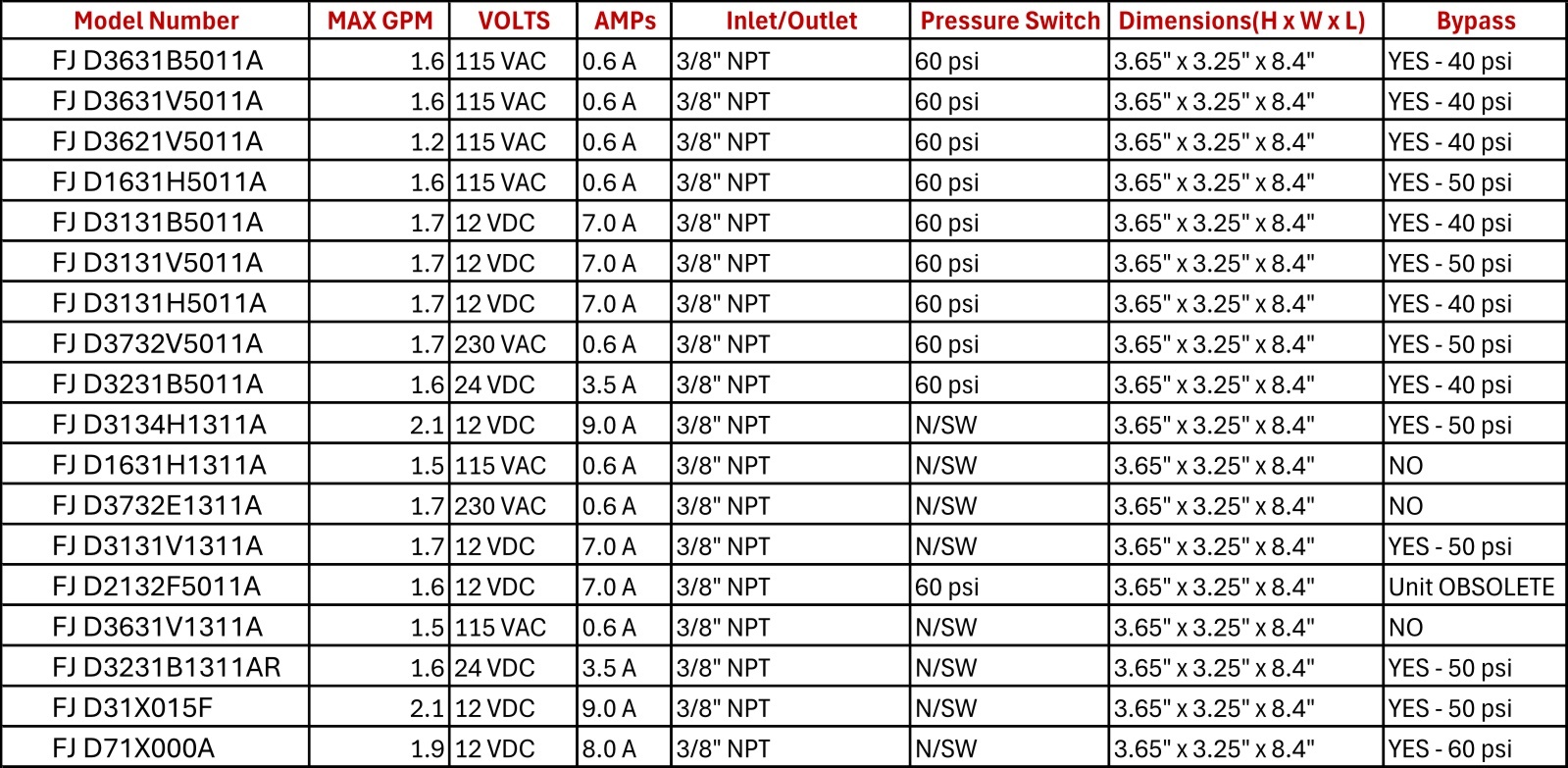

MODEL - MOTOR INFORMATION:
DUPLEX Series Discontinued - Some Parts Available - See Cross-Reference list below for matched replacement or Datasheets below for full Product Numbers
DUPLEX 2 Series Discontinued - Limited Units Available - See Repair kit Listings Below or Datasheets
_______________________
Wet End:
Plastic Housing - POLY, Diaphragm - VITON, BUNA or EPDM
_______________________
FLOJET REPAIR KIT NUMBERS: Extensive Variations Possible, Please Contact us with your Full Pump Model # and we can match Kits
- DUPLEX Series Comprehensive Repair List HERE - Some parts still available
- DUPLEX 2 Series Comprehensive Repair List HERE - Parts Available
CROSS-REFERENCE MODEL(S) LIST:
- FJ D3631B5011A Replaces FJ 02100-012A
- FJ D3631V5011A Replaces FJ 02100-020, FJ 02100-021
- FJ D3621V5011A Replaces FJ 02100-024
- FJ D1631H5011A Replaces FJ 02100-030, FJ 02100-031, FJ 02100-034
- FJ D3131B5011A Replaces FJ 02100-112
- FJ D3131V5011A Replaces FJ 02100-120, FJ 02100-121, FJ 02100-12A, FJ 02100-676A, FJ 02100-822, FJ 02100-012
- FJ D3131H5011A Replaces FJ 02100-130, FJ 02100-131, FJ 02100-134, FJ 02100-135
- FJ D3732V5011A Replaces FJ 02100-222
- FJ D3231B5011A Replaces FJ 02100-311A, FJ 02100-865C
- FJ D3221H5011AR - OBSOLETE Replaced FJ 02100-331 - OBSOLETE
- FJ D3134H1311A Replaces FJ 02100-515, FJ 02100-579, FJ 02100-615, FJ 02100-694
- FJ D1631H1311A Replaces FJ 02100-549, FJ 02100-657, FJ 02100-929
- FJ D3732E1311A Replaces FJ 02100-556
- FJ D3131V1311A Replaces FJ 02100-646
- FJ D2132F5011A - OBSOLETE Replaced FJ 02100-652 - OBSOLETE
- FJ D3621V1311A - OBSOLETE Replaced FJ 02100-692 - OBSOLETE
- FJ 02100-734 - OBSOLETE Replaced FJ 02100-710 - OBSOLETE
- FJ D1334F5011A - OBSOLETE Replaced FJ 02100-789 - OBSOLETE
- FJ D3631V1311A Replaces FJ 02100-855
- FJ D2131I1311A - OBSOLETE Replaced FJ 02100-907 - OBSOLETE
- FJ D3231B1311AR Replaces FJ 02100-931
- FJ D31X015F Replaces FJ 02100-869
- FJ D71X000A Replaces FJ 02100-888
- FJ D2131I5011A Replaces FJ 02100-987
- FJ D3134H1311A Replaces FJ D3144H1311A
_______________________
FLOJET PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- FLOJET by XYLEM, DUPLEX 02100 MANUAL (View and/or Download)
- FLOJET by XYLEM, DUPLEX 02125 MANUAL (View and/or Download)
- FLOJET by XYLEM, DUPLEX to DUPLEX 2 CROSS-REFERENCE (View and/or Download)
- FLOJET by XYLEM, DUPLEX 02100 / 02125 PARTS LIST (View and/or Download)
- FLOJET by XYLEM, DUPLEX 02100 INSTALLATION MANUAL (View and/or Download)
- FLOJET by XYLEM, DUPLEX 2 SERIES BROCHURE (View and/or Download)
- FLOJET by XYLEM, DUPLEX 2 SERIES MANUAL (View and/or Download)
- FLOJET by XYLEM, DUPLEX 2 SERIES HIGH PRESSURE VARIENT MANUAL (View and/or Download)
- FLOJET by XYLEM, DUPLEX 2 SERIES TECHNICAL DRAWING (View and/or Download)
- FLOJET by XYLEM, DUPLEX 2 SERIES COMPLETE MODEL VARIENTS (View and/or Download)
- FLOJET by XYLEM, DUPLEX 2 SERIES CHEMICAL REFERENCE / PARTS LIST (View and/or Download)
