Product Description
Oberdorfer 300B Bronze Self-Priming Centrifugal Pump
Uses: Marine Air Conditioning, Chemical re-circulation, chemical transfer, bicarbonate systems, de-ionized water systems, refrigerators, scrubber systems, detergent mixers.
Model: 300B
LEAD TIME is 1-3 days
FEATURES:
- UP to 1200 GPH
- Max Flow = 20 Gal/min at 5FT
- Max Head = 35FT
- Up to 69,000 BTU
- 115V/230V 50/60hz Options
- Inlet: 1" FPT
- Outlet: 1" FPT
Oberdorfer Centrifugal pumps use a standard NEMA C-Flange Jet Pump Motor with weld-on base and threaded shaft end to accept the pump impeller. The 300 Series Pumps must be operated in a horizontal position.
The 300B model has Rugged Bronze Construction with Teflon barrier seal to protect the bearings as well as reduce noise. Offered with a flexible discharge port orientation alongside multiple shaft and seal options for a variety of fluid and temperature uses.
Standard Mechanical seal is Nitrile rubber at 212F max temp. Optional FKM and PTFE seals are available for severe solvents, chemicals and elevated temperatures.
Maximum liquid viscosity is 2000 Saybolt Seconds Universal; however, the higher viscosity will lower the flow and require more HP. Higher viscosity fluids as well as particulate in the fluid will reduce seal life-expectancy.
These Centrifugal Pumps are self-priming with a lift of 20 FT. Suction lift beyond 15 FT requires a foot or check valve and filled inlet valve. On top of the housing is a 1/2" filler port for initial setup or reset after a dry drain of the system. In centrifugal pumps the HP required will decrease as the pressure increases, a wide-open discharge uses maximum HP.
_______________________
Wet End:
Bronze Impeller, Nitrile rubber seal (optional FKM and PTFE seals), Monel Shaft or Stainless Steel(316SS or 416SS).
Max Internal Temperature: 212 °F (100 °C) Nitrile Standard Seal
_______________________
Oberdorfer REPAIR KIT NUMBERS:
- Oberdorfer p/n: 10865 Repair Kit is for Series 300B
- Oberdorfer p/n: 10867 Repair Kit is for Series 300B-06
- Oberdorfer p/n: 10866 Repair Kit is for Series 300BP
- Oberdorfer p/n: 11290 Repair Kit is for Series 300BS-10
- Oberdorfer p/n: 11604 Repair Kit is for Series 300BS-11

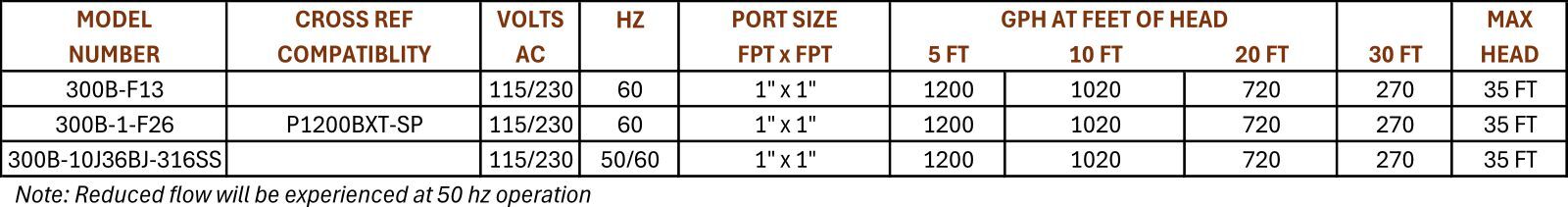

CROSS-REFERENCE MODEL(S) LIST:
Interchangeable Oberdorfer Model: OB 300B-F13C, OB 300B-01-F26C
Replacement for Cruisair Models: P1200BXT-SP
_______________________
Oberdorfer PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- OBERDORFER 300B Series (115/230V) DIMENSIONAL DRAWING AND SPECIFICATIONS(View and/or Download)
- OBERDORFER 300B Series METRIC BRONZE PUMP OVERVIEW(View and/or Download)
- OBERDORFER 300B Series IMPERIAL BRONZE PUMP OVERVIEW(View and/or Download)
- OBERDORFER 300B Series BRONZE PUMP INSTALLATION AND MAINTENANCE(View and/or Download)
- OBERDORFER 300B Series CENTRIFUGAL SEAL REPLACEMENT INSTRUCTIONS(View and/or Download)
