Product Description
Oberdorfer 200 Series Bronze Rubber Impeller Pumps (AC or DC Motors)
Uses: Bilge, Washdown, Baitwell, General Transfer.
Model:N201, N211D, N211M
LEAD TIME is 1-3 days
FEATURES:
- UP to 750 GPH
- Max Flow = 12.5 Gal/min at 1FT
- Max Head = 49FT
- AC or DC Motors
- Inlet: 3/4" GHT, 3/8" NPT
- Outlet: 3/4" GHT, 3/8" NPT
- HEAD ONLY is also Available
Oberdorfer 200 series Rubber Impeller pumps offers AC and DC motors to handle all your liquid needs around marine industry. Regularly used for bilge duties, baitwell and general transfer. Liquids compatible with neoprene can be handed without issue, this series CANNOT be used with severe solvents or acids. Best Practices for maintenance are to flush the pump with fresh water regularly. Freezing liquids will damage the pump, if pump is to be left in storage or being used in freezing temperatures it should be flushed with air when done. Entire series offers a bronze head and 303 stainless steel shaft with neoprene or nitrile impellers. Model N211D offers a carry handle and is rated for the U.S. Coast Guard ignition protection requirement (33CFR 183.410).
All models offer external 3/4" GHT threads or internal 3/8" NPT threads.
NOTE: Models N211D and N211M are offered HEAD ONLY, if you require a motor please contact us.

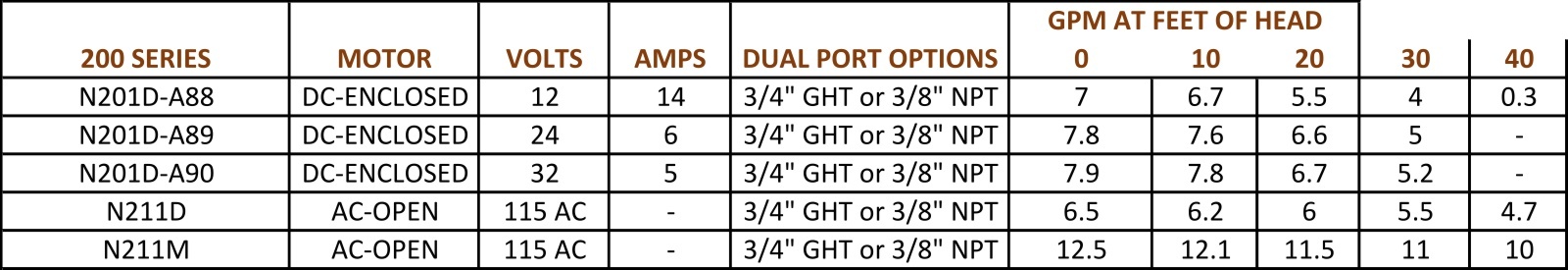

MODEL - MOTOR INFORMATION:
ODP or TEFC MOTORS Available, ODP is STANDARD AC motor.
N201D MODELS
12V - A88 - 8029, 14 AMPS, 2290 RPM
24V - A89 - 8030, 6 AMPS, 2490 RPM
32V, A90 - 8031, 5 AMPS, 2530 RPM
N211D MODEL
115V, 1/6 HP, 1725 RPM, ODP
N211M MODEL
115V, 1/6 HP, 3450 RPM, ODP
_______________________
Wet End:
Bronze Housing, NEO or Nitrile Impeller, 303 Stainless Shaft.
Max Internal Temperature: 140 °F (40 °C)
_______________________
Oberdorfer REPAIR KIT NUMBERS:
- Oberdorfer p/n: 10703 (NEOPRENE) Repair Kit is for Series 201
- Oberdorfer p/n: 111666 (Buna-N) Repair Kit is for Series 201
- Items included; 0-ring, NEO Impeller, Lip Seal.
- Items included; 0-ring, NEO Impeller, Lip Seal.
- Oberdorfer p/n: 12221 (Buna-N) Repair Kit is for Series 211D
- Oberdorfer p/n: 10933 (NEOPRENE) Repair Kit is for Series 211D
- Items included; 0-ring, NEO Impeller, Impeller Bushing,Lip Seal.
- Oberdorfer p/n: 10910 Repair Kit is for Series 211M
- Items included; 0-ring, Impeller, Impeller Bushing, Lip Seal.
- Items included; 0-ring, Impeller, Impeller Bushing, Lip Seal.
- Oberdorfer p/n: 6593 NEOPRENE Impeller
- Oberdorfer p/n: 8514 Buna-N (NITRILE) Impeller
- SERVICE KITS AVAILABLE, BUILT-TO-ORDER AT THE WAREHOUSE
CROSS-REFERENCE MODEL(S) LIST:
UNAVAILABLE
_______________________
Oberdorfer PUMP DRAWINGS, CURVES, MANUAL & GENERAL INSTALLATION INFO
(PDF VIEW AND/OR DOWNLOAD)
- OBERDORFER 201 Series (12/24/32V) DIMENSIONAL DRAWING AND SPECIFICATIONS(View and/or Download)
- OBERDORFER 211D Series (AC MOTOR) DIMENSIONAL DRAWING AND SPECIFICATIONS(View and/or Download)
- OBERDORFER 211M Series (AC MOTOR) DIMENSIONAL DRAWING AND SPECIFICATIONS(View and/or Download)
- OBERDORFER BRONZE SERIES GENERAL UTILITY PUMP CATALOG (View and/or Download)
